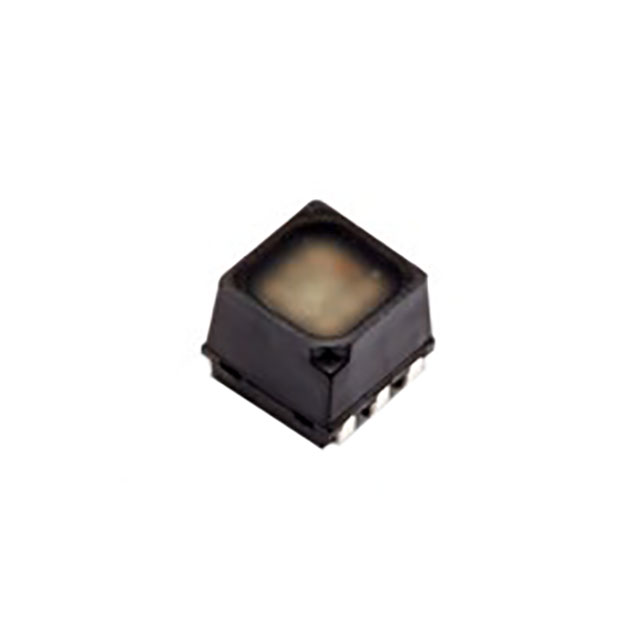

ASCB-UTC2-0A30B
LED RGB 6PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 621nm Red, 522nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 2.8V Green, 2.9V Blue 6-SMD, J-Lead
Additional Information
Series: ASCB-UTC2RoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 2.70mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 530mcd Red, 1000mcd Green, 210mcd Blue |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 2.8V Green, 2.9V Blue |
| Lens Color | - |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 105° |
| Height (Max) | 2.60mm |
| Wavelength - Peak | 628nm Red, 516nm Green, 466nm Blue |
| Wavelength - Dominant | 621nm Red, 522nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | - |
| Lens Style | Oval with Flat Top |
| Lens Size | - |
Request a Quote
