ASCB-NTC2-0A307
LED RGB 4PLCC SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

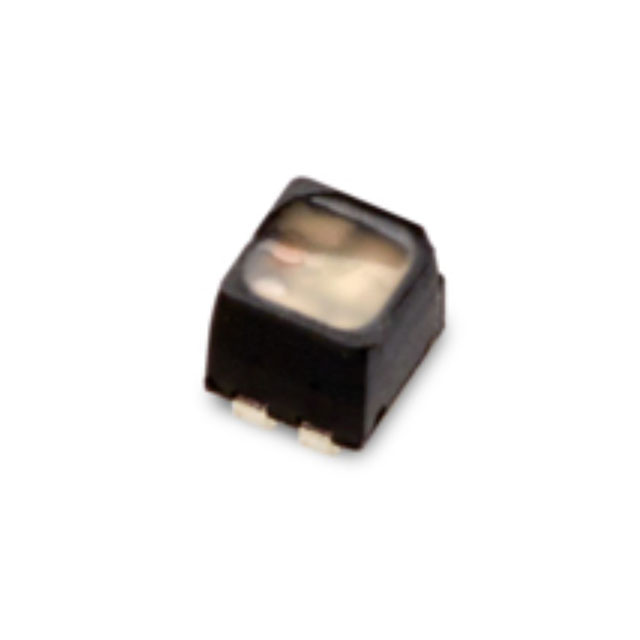

Broadcom Limited ASCB-NTC2-0A307 is a Common Anode RGB LED designed for surface mount applications. This 4-PLCC package component features discrete Red, Green, and Blue emitters, with dominant wavelengths of 621nm (Red), 524nm (Green), and 471nm (Blue). Typical forward voltages are 2V for Red, 2.9V for Green, and 2.7V for Blue, when driven at test currents of 10mA for Red and Green, and 5mA for Blue. The component offers millicandela ratings of 180mcd (Red), 440mcd (Green), and 55mcd (Blue). Its 1.05mm lens size and 105° viewing angle make it suitable for indication in various industrial and consumer electronics applications, including lighting and display systems. The device is supplied on tape and reel for automated assembly, with dimensions of 1.30mm L x 1.40mm W and a maximum height of 1.60mm.
Additional Information
Series: ASCB-NTC2RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 1.30mm L x 1.40mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 180mcd Red, 440mcd Green, 55mcd Blue |
| Configuration | Common Anode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.9V Green, 2.7V Blue |
| Lens Color | - |
| Current - Test | 10mA Red, 10mA Green, 5mA Blue |
| Viewing Angle | 105° |
| Height (Max) | 1.60mm |
| Wavelength - Peak | 629nm Red, 519nm Green, 468nm Blue |
| Wavelength - Dominant | 621nm Red, 524nm Green, 471nm Blue |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | - |
| Lens Style | Oval with Flat Top |
| Lens Size | 1.05mm |
