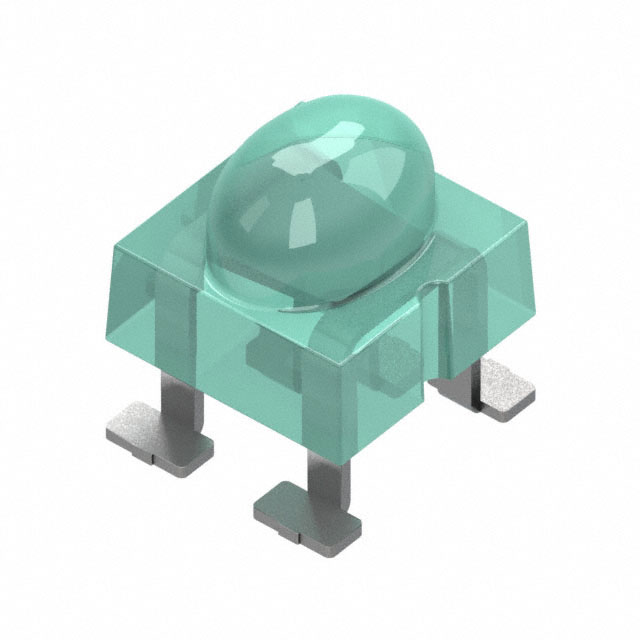

ALMD-LM36-14002
LED GREEN DIFFUSED 4SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Green 525nm LED Indication - Discrete 3.2V 4-SMD, J-Lead
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 4.20mm L x 4.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 4475mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 100°, 40° |
| Height (Max) | 5.70mm |
| Wavelength - Peak | 516nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Diffused |
| Lens Style | Oval with Domed Top |
| Lens Size | - |
