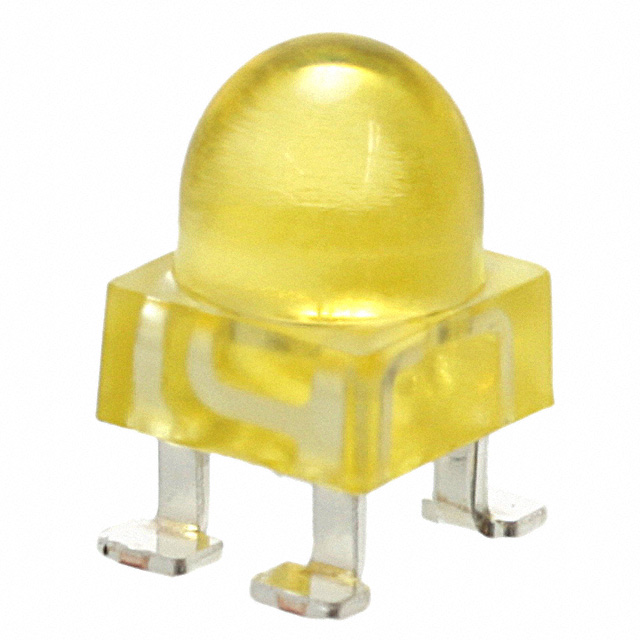

ALMD-EL3D-VX002
LED AMBER CLEAR SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ALMD-EL3D-VX002 is a surface-mount amber LED, specified for general indication. This discrete component emits light at a dominant wavelength of 590nm, with a peak wavelength of 594nm. It features a clear, round lens with a domed top, designed for a 30° viewing angle. The forward voltage (Vf) is typically 2.1V at a test current of 20mA, producing a luminous intensity of 6750mcd. The LED is housed in a 4-SMD, Gull Wing package (4.20mm L x 4.20mm W) and is supplied on tape and reel. This component is suitable for applications in automotive and industrial sectors requiring reliable visual status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Amber |
| Size / Dimension | 4.20mm L x 4.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 6750mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Amber |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | 594nm |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Grade | - |
| Lens Style | Round with Domed Top |
| Lens Size | - |
| Qualification | - |
