ALMD-EG3D-VX002
LED RED CLEAR SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

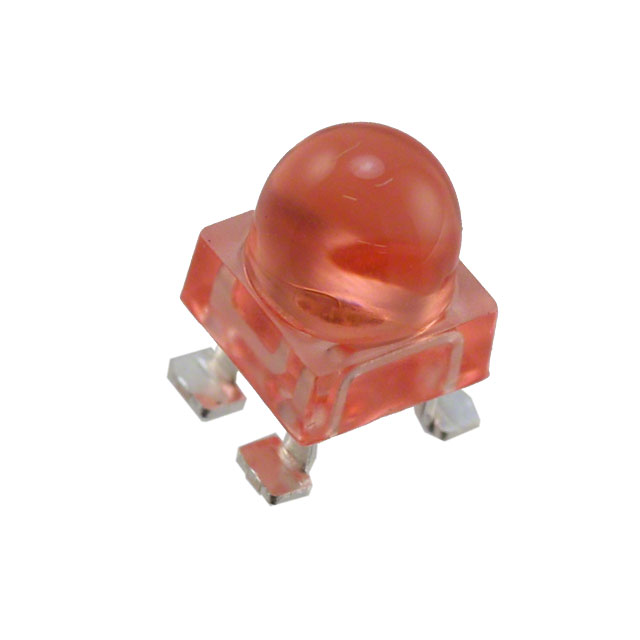

Broadcom Limited ALMD-EG3D-VX002 is a red, clear lens, Surface Mount LED. This discrete indicator component features a dominant wavelength of 626nm and a peak wavelength of 634nm. It operates with a typical forward voltage of 2.1V and a test current of 20mA, achieving a luminous intensity of 6750mcd. The LED is housed in a 4-SMD, Gull Wing package, measuring 4.20mm by 4.20mm. The component is supplied on tape and reel. This LED is commonly utilized in industrial automation, automotive lighting, and general indication applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Red |
| Size / Dimension | 4.20mm L x 4.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 6750mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | 634nm |
| Wavelength - Dominant | 626nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Grade | - |
| Lens Style | Round with Domed Top |
| Lens Size | - |
| Qualification | - |
