ALMD-CM3D-WY002
LED GREEN CLEAR 4SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More

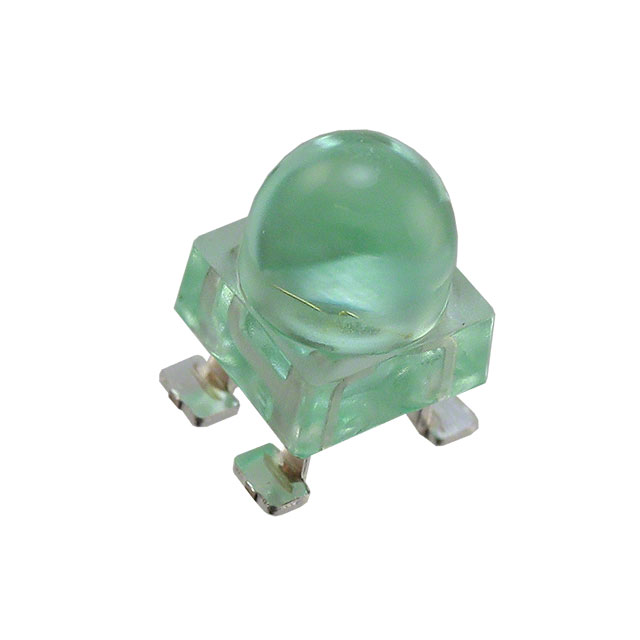

The Broadcom Limited ALMD-CM3D-WY002 is a green, clear lens, 525nm dominant wavelength LED designed for surface mount applications. This discrete LED component features a 3.2V forward voltage and a typical test current of 20mA, delivering 15150mcd luminous intensity. Its 4-SMD, Gull Wing package configuration, measuring 4.20mm x 4.20mm, is suitable for automated assembly processes. The domed top lens style provides a 30° viewing angle, making it ideal for indication purposes across various industries, including industrial automation, consumer electronics, and medical devices. Offered in Tape & Reel packaging, the ALMD-CM3D-WY002 is a reliable choice for high-volume production environments requiring precise and consistent LED performance.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Green |
| Size / Dimension | 4.20mm L x 4.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 15150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Green |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | 516nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | 4-SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | - |
