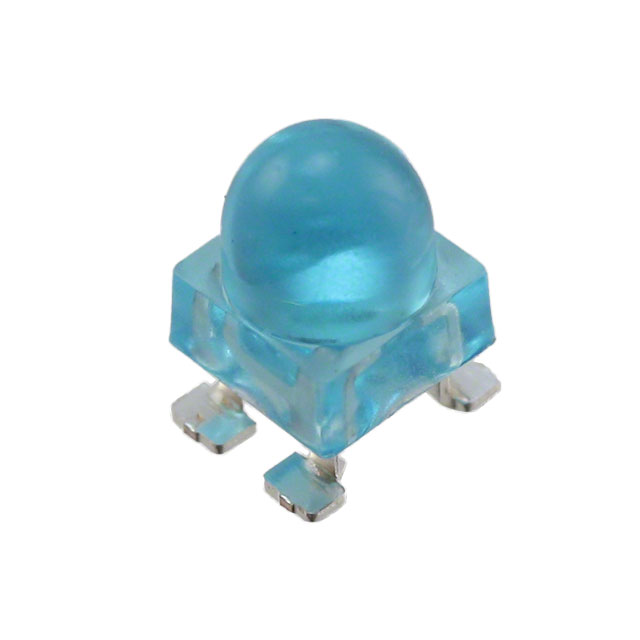

ALMD-CB3D-RT002
LAMP 5MM INGAN BLUE 30DEG SMDManufacturer: Broadcom Limited
Categories: LED Indication - Discrete
Quality Control: Learn More
Broadcom Limited ALMD-CB3D-RT002 is a surface-mount InGaN LED designed for indication applications. This discrete component features a 470nm dominant wavelength and a 464nm peak wavelength, producing a vibrant blue light. With a forward voltage of 3.2V (typical) at 20mA test current, it achieves a luminous intensity of 2350mcd. The LED is housed in a 4-SMD, Gull Wing package, measuring 4.20mm x 4.20mm with a maximum height of 7.00mm. Its round, domed top lens provides a focused 30° viewing angle. This component is widely utilized in automotive, industrial automation, and medical equipment sectors. Packaging is supplied on a cut tape reel.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Blue |
| Size / Dimension | 4.20mm L x 4.20mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 2350mcd |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 7.00mm |
| Wavelength - Peak | 464nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 4-SMD |
| Lens Style | Round with Domed Top |
| Lens Size | 4.20mm Dia |
