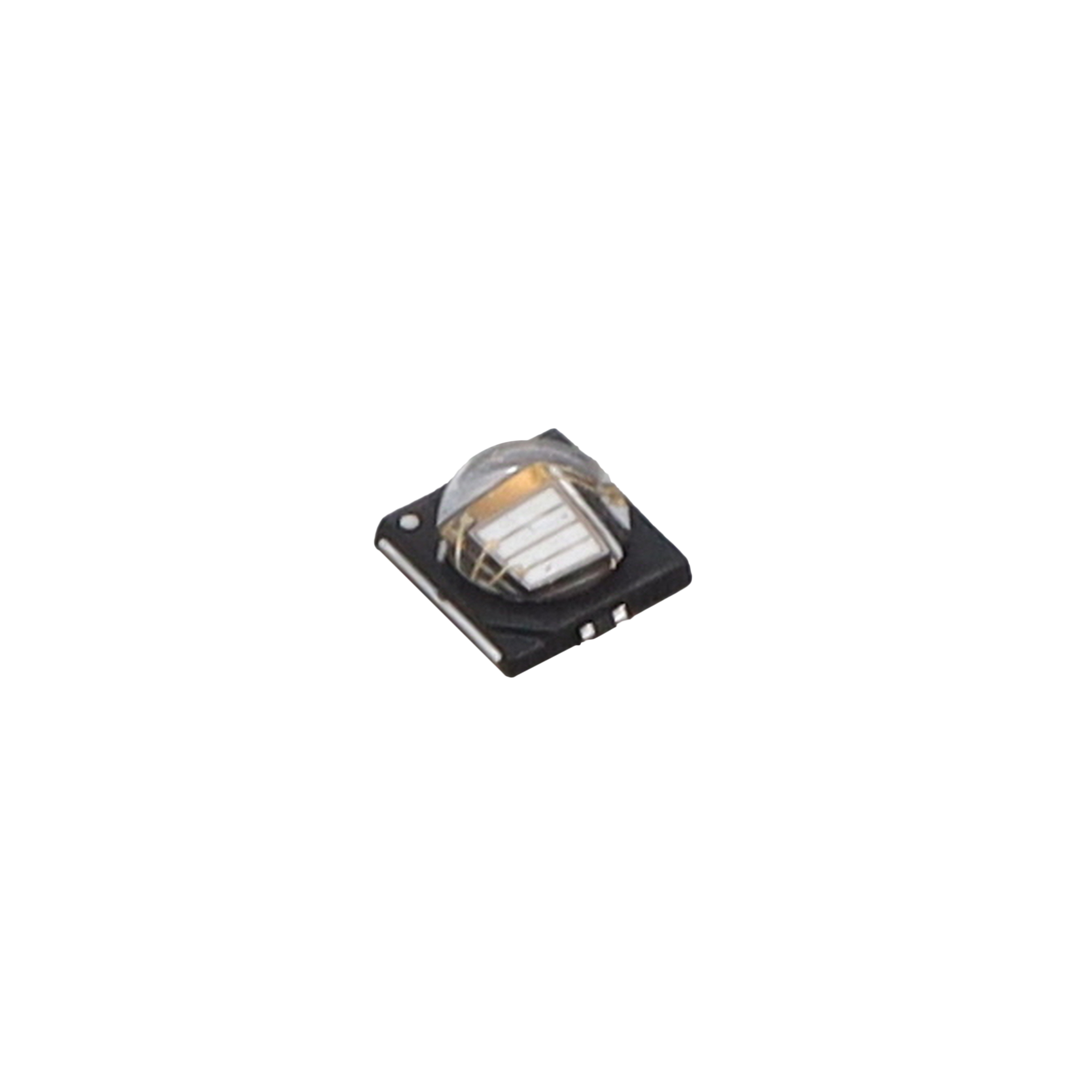

AUV4-STD1-0SU0J
3W 3535, 130DEG, 395NMManufacturer: Broadcom Limited
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Broadcom Limited AUV4-STD1-0SU0J, part of the AUV4-Sxx1-0xx0J series, is a 3W Ultraviolet (UV) emitter with a peak wavelength of 395nm. This component features a 130° viewing angle and is housed in a 3-SMD, No Lead package, suitable for surface mounting. It operates with a typical forward voltage of 3.35V and a maximum DC forward current of 700mA, delivering a radiant intensity of 1000mW/sr at 700mA. The operating temperature range for this device is -10°C to 85°C. It is supplied in Tape & Reel packaging. This emitter is utilized in industries requiring UV curing, sterilization, and detection applications.
Additional Information
Series: AUV4-Sxx1-0xx0JRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 395nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -10°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 3.35V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | 1000mW/sr @ 700mA |
