AUV4-SSD1-0RU0J
3W 3535, 130DEG, 385NMManufacturer: Broadcom Limited
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

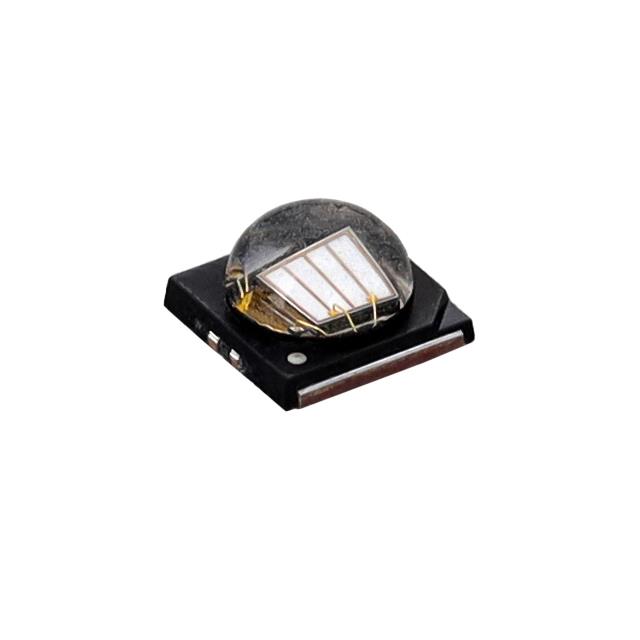

Broadcom Limited AUV4-SSD1-0RU0J is a 3535 package ultraviolet emitter with a peak wavelength of 385nm. This component offers a forward voltage of 3.35V and a maximum forward current of 700mA, delivering a radiant intensity of 910mW/sr at its maximum current. The emitter features a wide 130° viewing angle and is designed for top-view surface mounting in a 3-SMD, No Lead package. Operating within a temperature range of -10°C to 85°C, this Broadcom AUV4-Sxx1-0xx0J series LED is supplied on a tape and reel. Its UV output is suitable for applications in curing, sterilization, and analytical instrumentation.
Additional Information
Series: AUV4-Sxx1-0xx0JRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 385nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -10°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 3.35V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | 910mW/sr @ 700mA |
