AUV4-SS61-0QT0J
3W 3535, 60DEG, 385NMManufacturer: Broadcom Limited
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

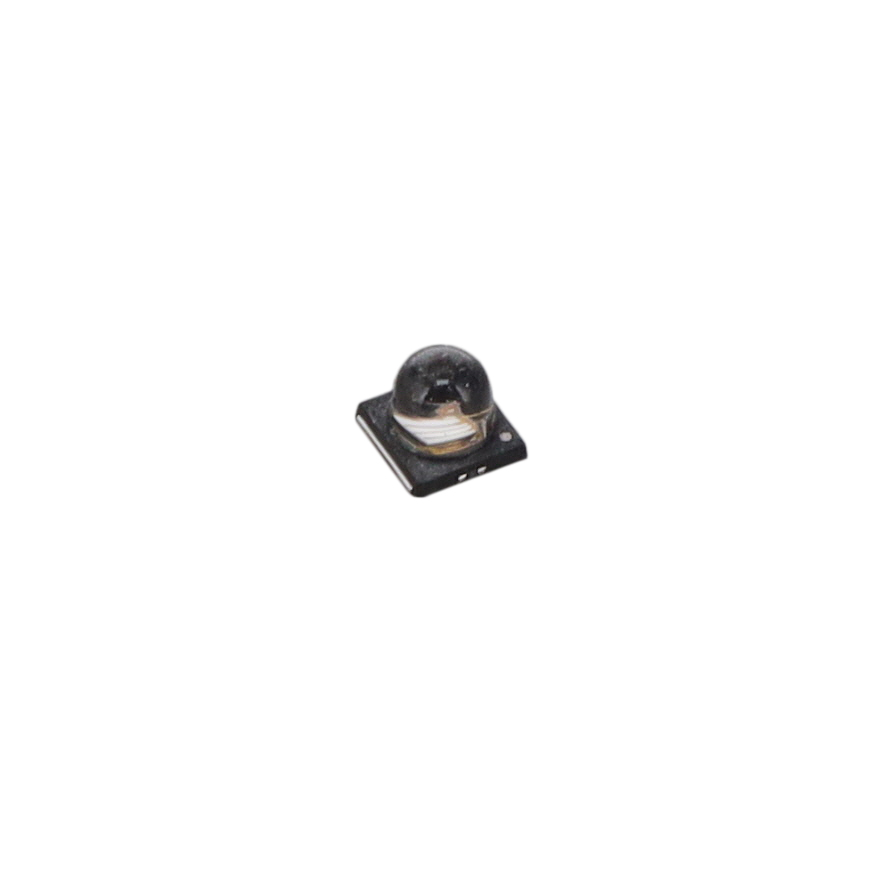

The Broadcom Limited AUV4-SS61-0QT0J is a 385nm Ultraviolet (UV) emitter from the AUV4-Sxx1-0xx0J series. This 3W 3535 package component features a 60° viewing angle and a forward voltage of 3.35V. It is designed for a DC forward current of up to 700mA, delivering a radiant intensity of 830mW/sr at this current. The component is surface-mounted in a 3-SMD, No Lead package and operates within a temperature range of -10°C to 85°C. This UV emitter is suitable for applications in areas such as curing, sterilization, and analytical instrumentation. It is supplied in a Tape & Reel (TR) package.
Additional Information
Series: AUV4-Sxx1-0xx0JRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 385nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -10°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 3.35V |
| Viewing Angle | 60° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | 830mW/sr @ 700mA |
