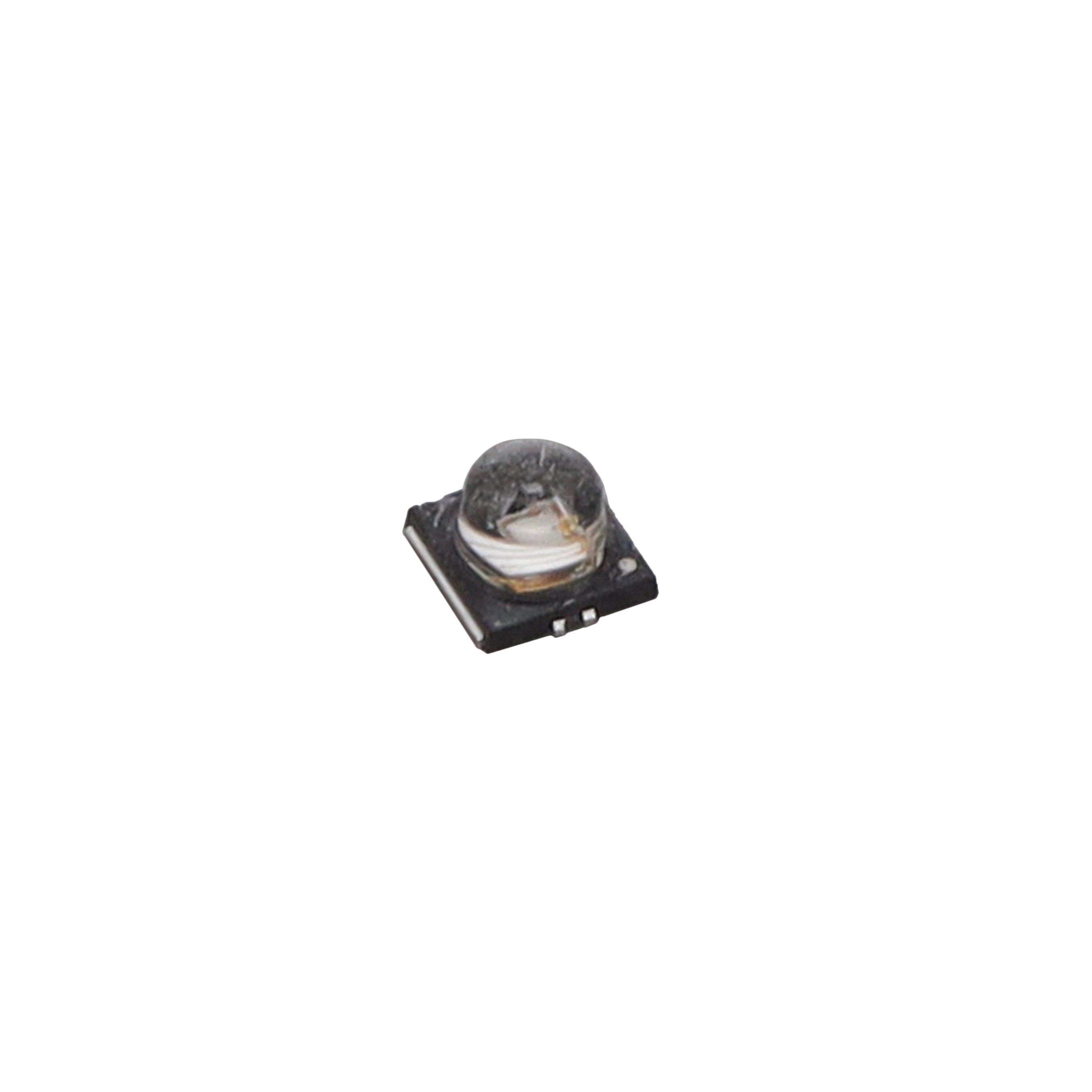

AUV4-SQ61-0QS0J
3W 3535, 60DEG, 365NMManufacturer: Broadcom Limited
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Broadcom Limited AUV4-SQ61-0QS0J is a 365nm Ultraviolet emitter. This 3-SMD, No Lead component features a 60° viewing angle and a forward voltage of 3.55V at a maximum DC forward current of 500mA. The radiant intensity is specified as 830mW/sr at 500mA. Designed for surface mount applications, it operates within a temperature range of -10°C to 85°C and is supplied on tape and reel. This UV emitter is suitable for applications in areas such as curing, sterilization, and analytical instrumentation.
Additional Information
Series: AUV4-Sxx1-0xx0JRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 365nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -10°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 3.55V |
| Viewing Angle | 60° |
| Current - DC Forward (If) (Max) | 500mA |
| Radiant Intensity (Ie) Min @ If | 830mW/sr @ 500mA |
