AREQ-9520-PR000

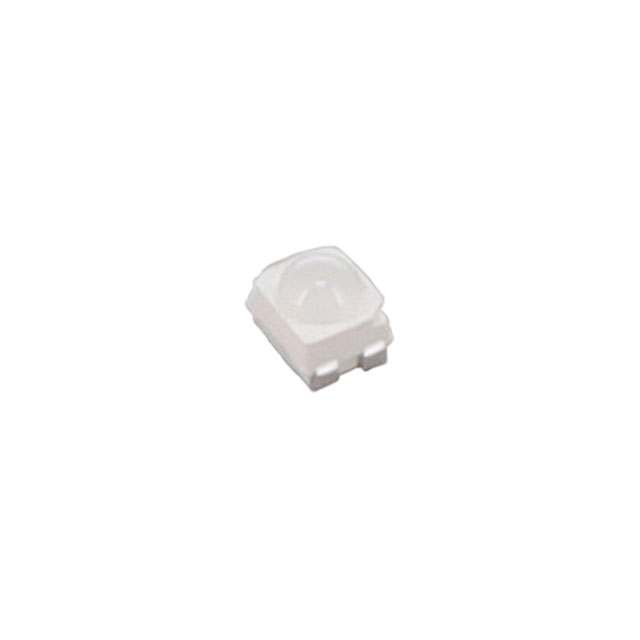

3528 PLCC-4 LENS INFRARED LEDManufacturer: Broadcom Limited
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Infrared (IR) Emitter 940nm 3.1V 100mA 45mW/sr @ 100mA 50° 4-PLCC
Additional Information
Series: AREQ-9x20-xx000RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Wavelength | 940nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 45mW/sr @ 100mA |
Request a Quote
Clients Also Buy
AREQ-9020-MP000
3528 PLCC-4 SURFACE MOUNT INFRAR

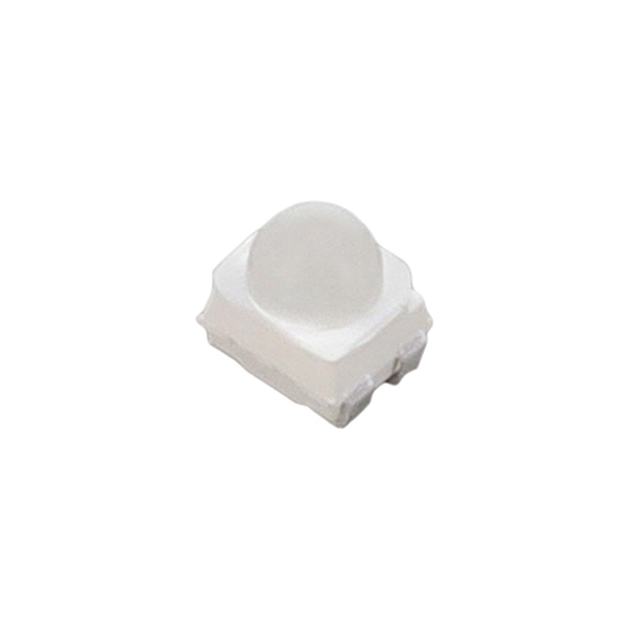

AREQ-9320-RT000
