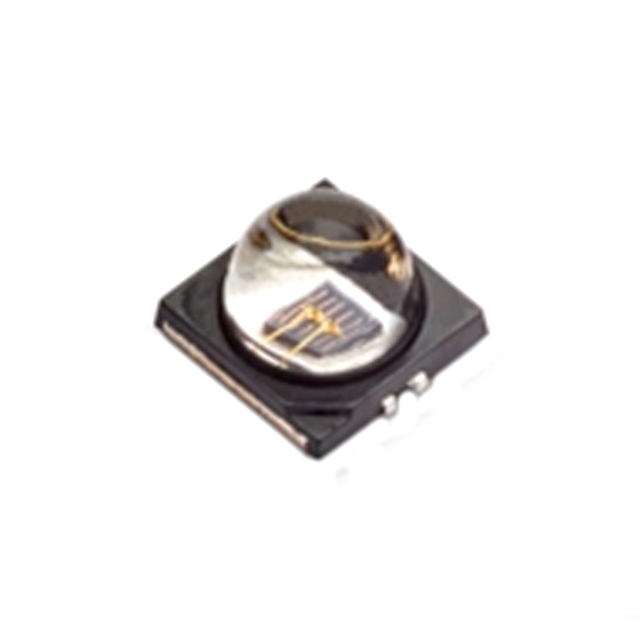

ARE6-88D1-0GH00
HIGH POWER IRLED, 855NM, 80DEGManufacturer: Broadcom Limited
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Broadcom Limited ARE6-88D1-0GH00 is an infrared emitter from the ARE6-xxx1-0xx00 series. This component offers a peak wavelength of 855nm with a typical forward voltage of 1.65V and a maximum DC forward current of 2A. It features a wide 80° viewing angle and delivers a radiant intensity of 400mW/sr at 1A. The device is designed for surface mounting in a 3-SMD, No Lead package and operates across a temperature range of -40°C to 120°C. Packaged on tape and reel, this high-power IR LED is suitable for applications in optical sensing, security systems, and industrial automation where precise infrared illumination is required.
Additional Information
Series: ARE6-xxx1-0xx00RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 855nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 120°C |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 2A |
| Radiant Intensity (Ie) Min @ If | 400mW/sr @ 1A |
