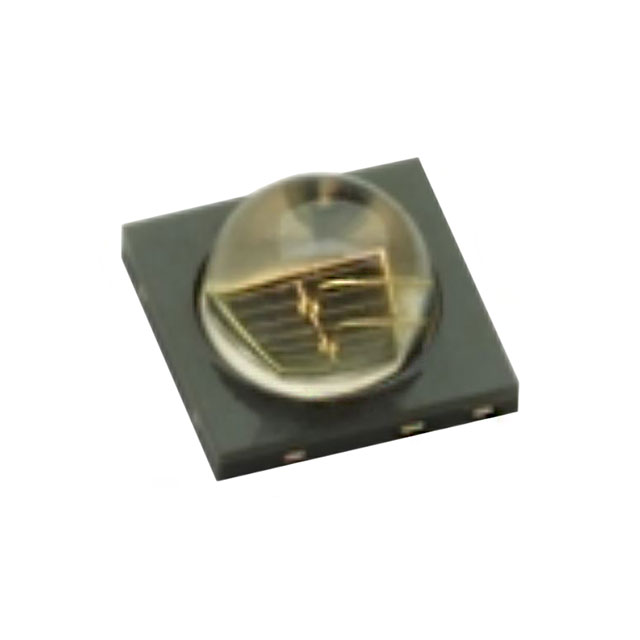

ARE1-9540-00000
HIGH POWER IRLED, 940NM, 50DEGManufacturer: Broadcom Limited
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Broadcom Limited ARE1-9540-00000 is a high-power infrared (IR) emitter from the ARE1-x5x0-00000 series. This 940nm device features a 50° viewing angle and a forward voltage (Vf) of 3.1V. It is designed for surface mounting in a 3-SMD, No Lead package and is supplied on tape and reel. Capable of handling up to 1A DC forward current, it achieves a radiant intensity of 900mW/sr @ 1A. The operating temperature range is -40°C to 85°C. This component is suitable for applications in industrial automation, security systems, and optical sensing.
Additional Information
Series: ARE1-x5x0-00000RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 940nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 900mW/sr @ 1A |
