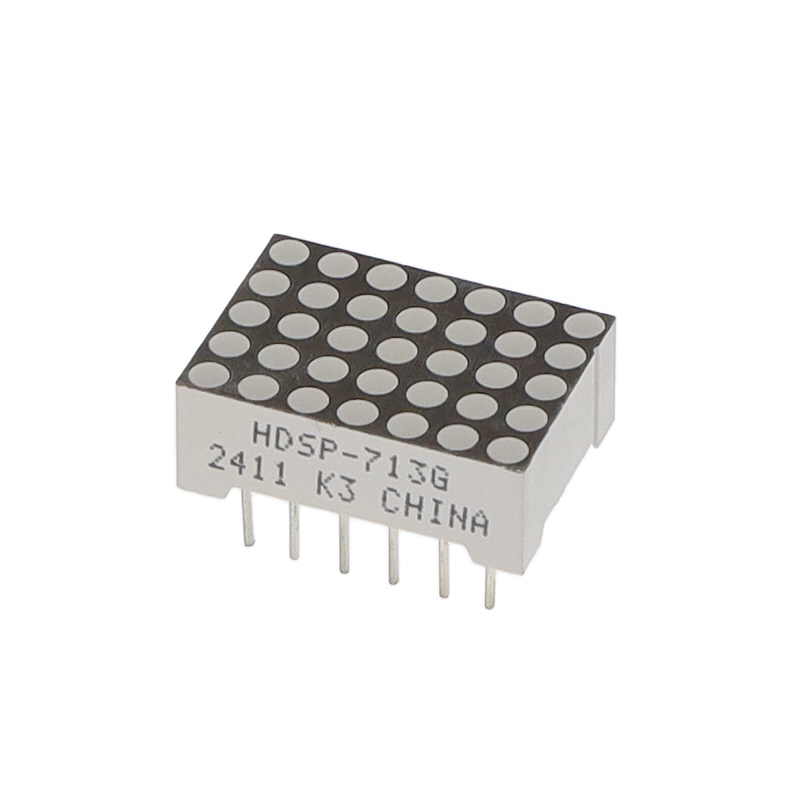

HDSP-713G
DISPLAY DOT 5X7 GREEN CRC 0.68Manufacturer: Broadcom Limited
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More
Broadcom Limited HDSP-713G is a 5x7 dot matrix display module from the HDSP-71xG series. This component features a common cathode row and common anode column internal connection, presenting a green monochromatic display. The typical forward voltage is 2.25V. Dimensions are 0.70 inches (17.80mm) long, 0.50 inches (12.70mm) wide, and 0.25 inches (6.30mm) high. Typical luminous intensity ranges from 960µcd to 7.28mcd. This display module is suitable for applications in industrial control, instrumentation, and point-of-sale systems requiring clear, segmented character or graphic representation. The HDSP-713G is supplied in bulk packaging.
Additional Information
Series: HDSP-71xGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Green |
| Size / Dimension | 0.70"" L x 0.50"" W x 0.25"" H (17.80mm x 12.70mm x 6.30mm) |
| Interface | - |
| Millicandela Rating | 960µcd ~ 7.28mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Internal Connection | Common Cathode Row, Common Anode Column |
