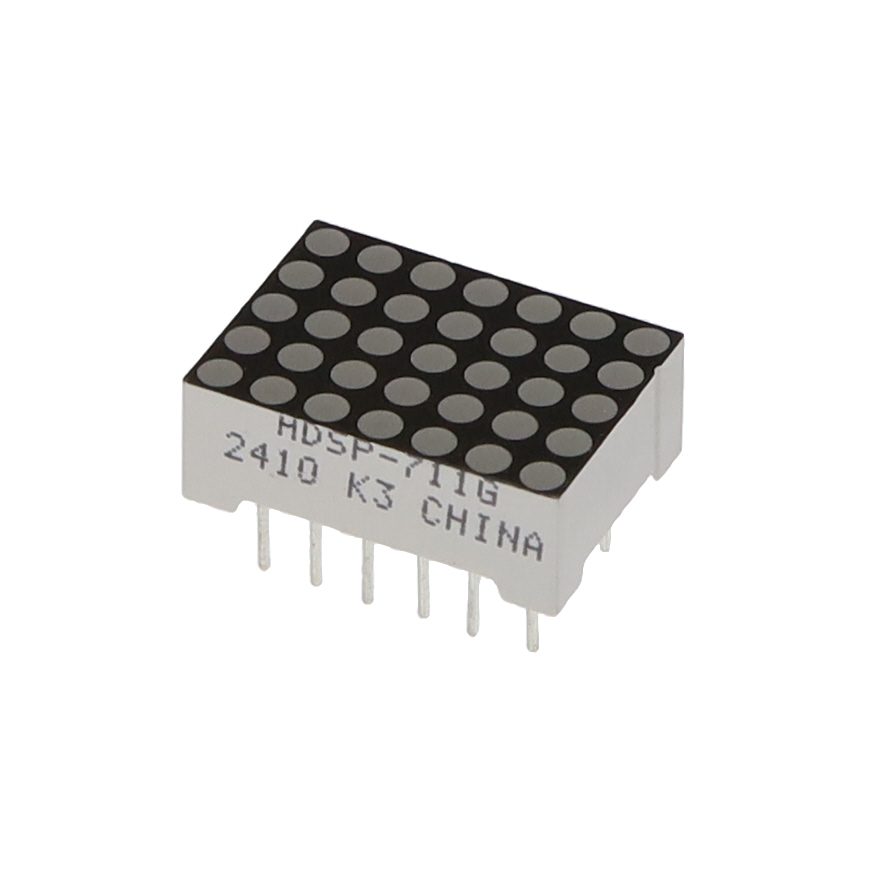

HDSP-711G
DISPLAY DOT 5X7 GREEN CRA 0.68Manufacturer: Broadcom Limited
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More
Broadcom Limited HDSP-711G, an HDSP-71xG series dot matrix display module, features a 5x7 configuration with a green LED color. This alphanumeric display utilizes a common anode row and common cathode column internal connection. The module dimensions are 0.70 inches (17.80mm) wide by 0.50 inches (12.70mm) high, with a depth of 0.25 inches (6.30mm). The typical forward voltage (Vf) is 2.25V. Luminous intensity ranges from 960µcd to 7.28mcd. This component is commonly employed in industrial automation, instrumentation, and point-of-sale systems. It is supplied in tube packaging.
Additional Information
Series: HDSP-71xGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Color | Green |
| Size / Dimension | 0.70"" L x 0.50"" W x 0.25"" H (17.80mm x 12.70mm x 6.30mm) |
| Interface | - |
| Millicandela Rating | 960µcd ~ 7.28mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Internal Connection | Common Anode Row, Common Cathode Column |
