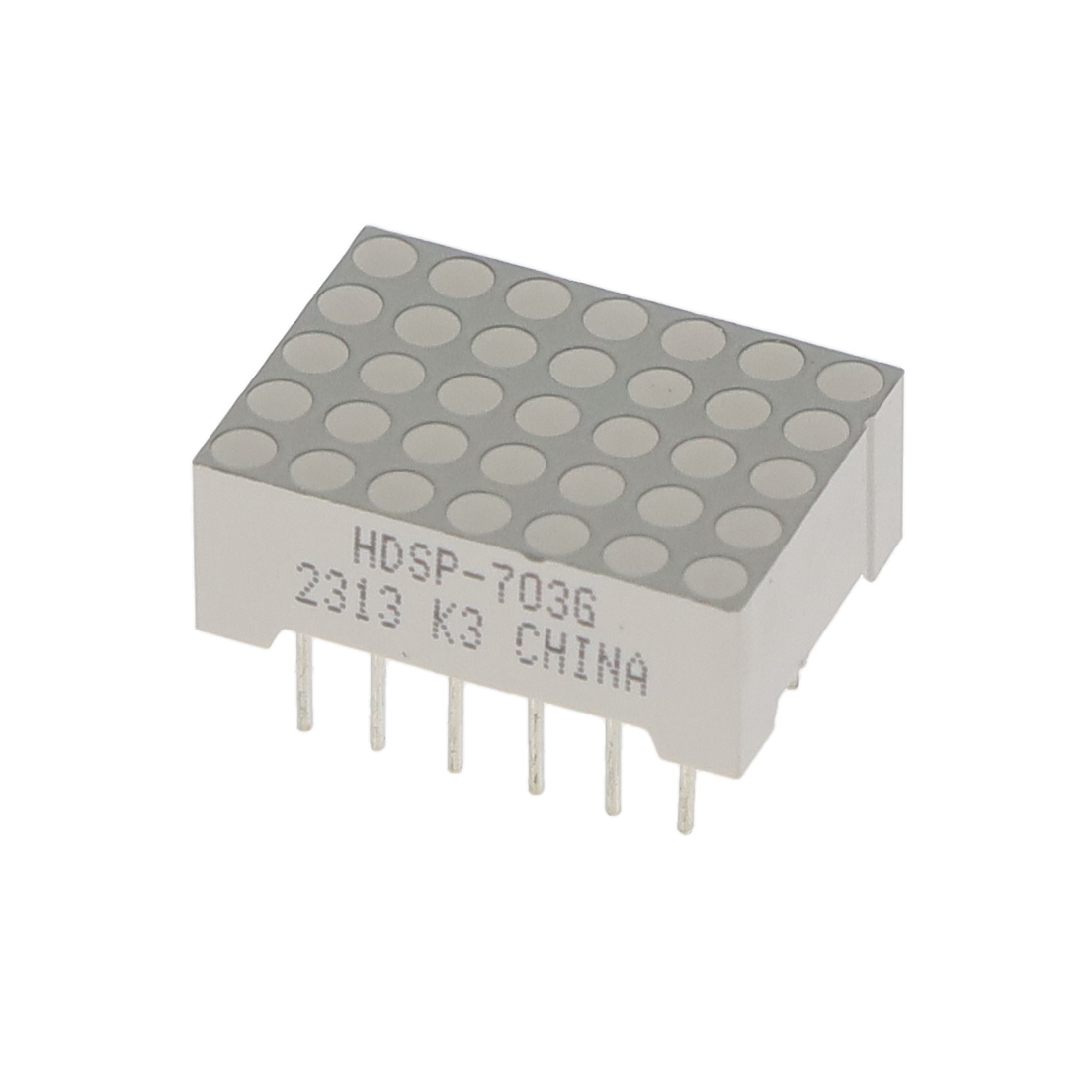

HDSP-703G
DISPLAY DOT 5X7 GREEN CRC 0.68Manufacturer: Broadcom Limited
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More
Broadcom Limited HDSP-703G is a 5x7 dot matrix alphanumeric display module featuring a green LED array. This component utilizes a common cathode row and common anode column internal connection scheme, facilitating efficient driving. With a typical forward voltage of 2.25V, the HDSP-703G offers a character height of 0.70 inches (17.80mm) and a module dimension of 0.70" L x 0.50" W x 0.25" H (17.80mm x 12.70mm x 6.30mm). Its luminous intensity ranges from 960µcd to 7.28mcd. This display is commonly integrated into industrial control systems, test and measurement equipment, and point-of-sale terminals.
Additional Information
Series: HDSP-70xGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Green |
| Size / Dimension | 0.70"" L x 0.50"" W x 0.25"" H (17.80mm x 12.70mm x 6.30mm) |
| Interface | - |
| Millicandela Rating | 960µcd ~ 7.28mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Internal Connection | Common Cathode Row, Common Anode Column |
Request a Quote
