HDSP-701G
DISPLAY DOT 5X7 GREEN CRA 0.68Manufacturer: Broadcom Limited
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More

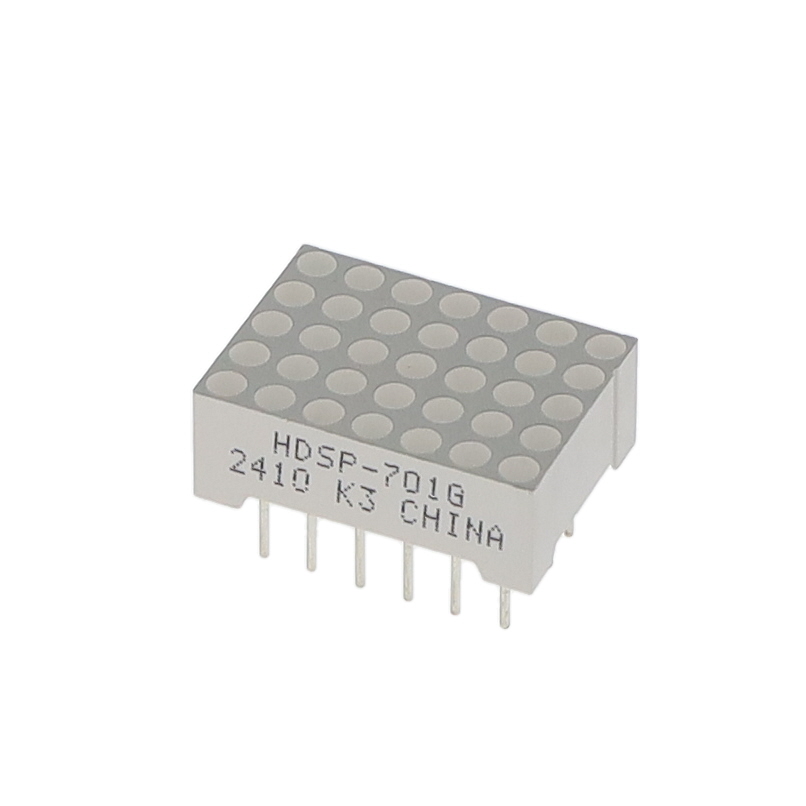

Broadcom Limited HDSP-70xG series HDSP-701G is a 0.70-inch diagonal, 5x7 dot matrix display module featuring a green light-emitting diode array. This component utilizes a common anode row and common cathode column internal connection scheme, enabling flexible drive configurations. The typical forward voltage (Vf) is 2.25V, with a luminous intensity ranging from 960µcd to 7.28mcd. Its compact dimensions of 17.80mm x 12.70mm x 6.30mm make it suitable for applications requiring clear visual feedback in instrumentation, industrial control systems, and point-of-sale terminals. The HDSP-701G is supplied in bulk packaging.
Additional Information
Series: HDSP-70xGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Color | Green |
| Size / Dimension | 0.70"" L x 0.50"" W x 0.25"" H (17.80mm x 12.70mm x 6.30mm) |
| Interface | - |
| Millicandela Rating | 960µcd ~ 7.28mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Internal Connection | Common Anode Row, Common Cathode Column |
