HDSP-2502
LED DISPLAY 5X7 8CHAR 7MM HE REDManufacturer: Broadcom Limited
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More

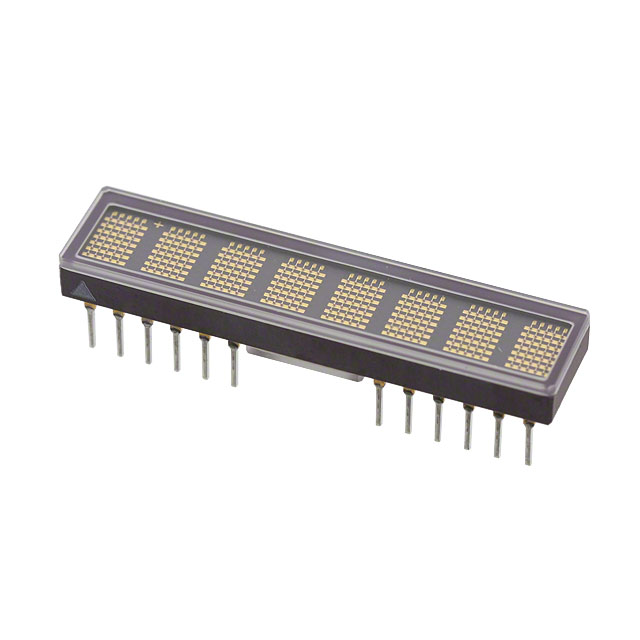

The Broadcom Limited HDSP-2502 is an 8-character, 5x7 dot matrix display module from the HDSP-250x series. Featuring a vibrant red LED illumination, this component offers a character height of 7mm. Its parallel, 8-bit interface facilitates straightforward data input for dynamic character generation. The module's dimensions are 2.79 inches in length, 0.76 inches in width, and 0.26 inches in height (70.87mm x 19.41mm x 6.60mm). Each segment provides a typical luminous intensity of 7.5 millicandelas. This display is commonly utilized in industrial control systems, medical equipment, and point-of-sale terminals, where clear, alphanumeric information display is critical. The HDSP-2502 is supplied in tube packaging.
Additional Information
Series: HDSP-250xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Color | Red |
| Size / Dimension | 2.79"" L x 0.76"" W x 0.26"" H (70.87mm x 19.41mm x 6.60mm) |
| Interface | Parallel, 8-Bit |
| Millicandela Rating | 7.5mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | - |
| Internal Connection | - |
