CSMW-LR00-ATV0E
2835 0.5W SMD-TLEDManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More

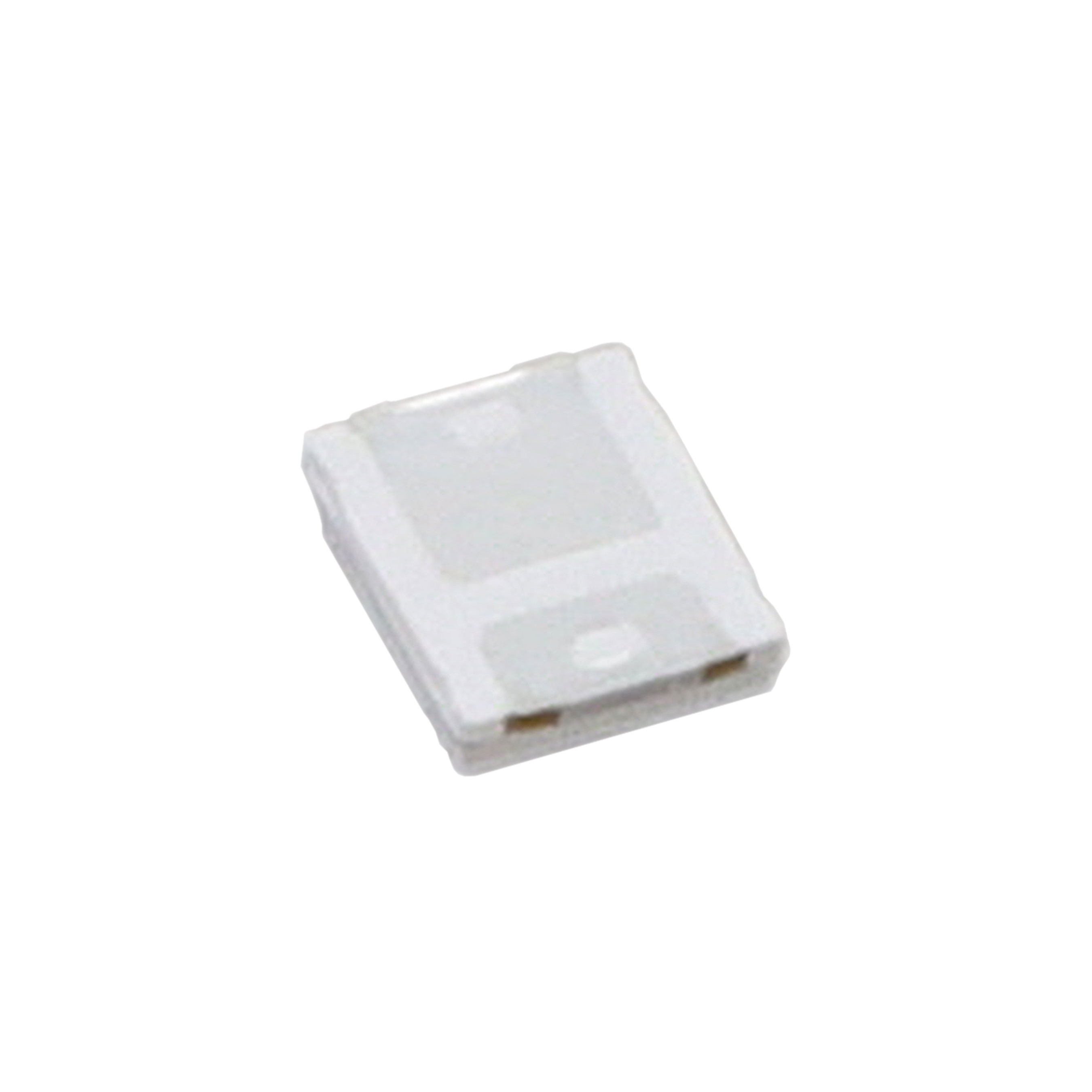

Broadcom Limited CSMW-Lx00 series Red LED, part number CSMW-LR00-ATV0E. This surface mount device, in a 1411 (3528 Metric) package, offers a typical forward voltage of 2.1V and a maximum continuous forward current of 200mA. It emits light at a peak wavelength of 622nm, with a typical luminous flux of 25 lumens at 150mA test current. The device achieves 60 lm/W efficiency at this test condition. With a broad 120° viewing angle and a low profile of 0.90mm seated height, this component is suitable for applications in general lighting and indicator systems. The 0.138" L x 0.110" W footprint and Tape & Reel packaging facilitate automated assembly.
Additional Information
Series: CSMW-Lx00RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1411 (3528 Metric) |
| Color | Red |
| Wavelength | 622nm (620nm ~ 635nm) |
| Size / Dimension | 0.138"" L x 0.110"" W (3.50mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 200mA |
| Supplier Device Package | 1411 |
| Lumens/Watt @ Current - Test | 60 lm/W |
| Height - Seated (Max) | 0.035"" (0.90mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 25lm (23lm ~ 32lm) |
Request a Quote
Clients Also Buy
ASM6-SL92-NTV0H

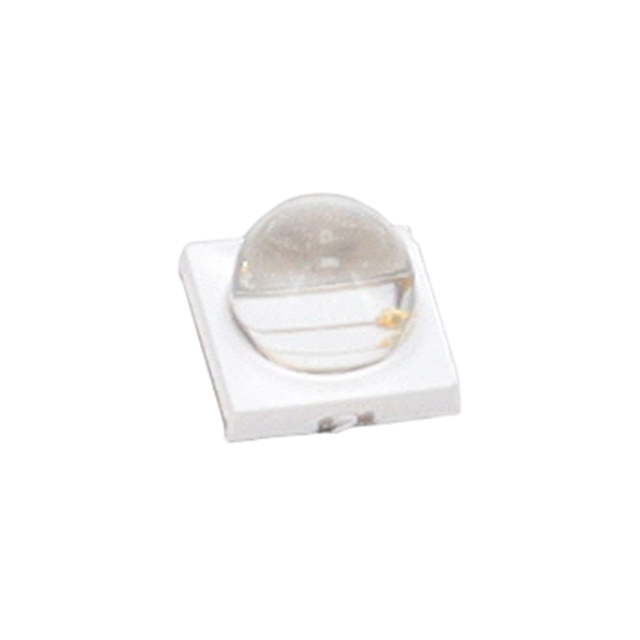

LED ASM6-SXXX-XXXXH BLU 3SMD
