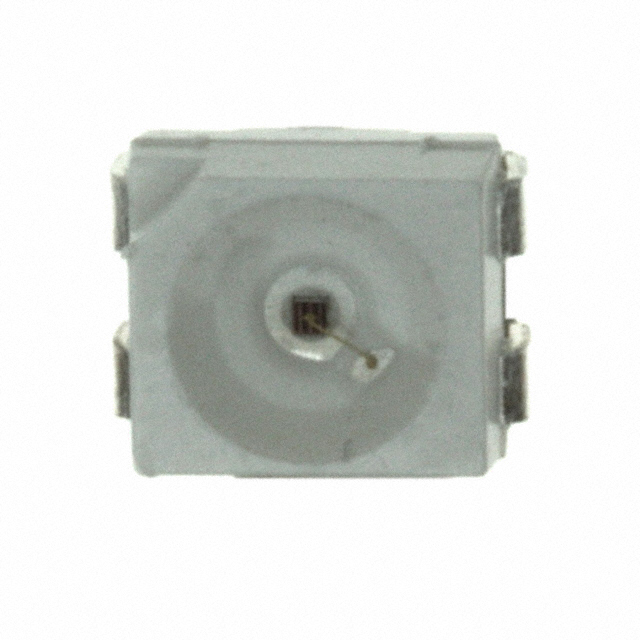

ASMT-QRB2-FCD0E
LED RED 628NM 4PLCCManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMT-QRB2-FCD0E is a red LED with a peak wavelength of 628nm, spanning a range of 620nm to 635nm. This surface-mount component is housed in a 4-PLCC package, measuring 3.20mm in length and 2.80mm in width, with a seated height of 2.10mm. It offers a typical forward voltage of 3.1V and a maximum continuous forward current of 150mA, with testing also conducted at 150mA. The luminous flux at 150mA and 25°C is rated at 9 lumens (7lm to 12lm), providing an efficacy of 19 lm/W. The viewing angle is 120°. This LED is commonly utilized in automotive lighting, signage, and general illumination applications. The ASMT-QRB2-FCD0E is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Red |
| Wavelength | 628nm (620nm ~ 635nm) |
| Size / Dimension | 0.126"" L x 0.110"" W (3.20mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Current - Test | 150mA |
| Viewing Angle | 120° |
| Current - Max | 150mA |
| Supplier Device Package | 4-PLCC |
| Lumens/Watt @ Current - Test | 19 lm/W |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 9lm (7lm ~ 12lm) |
