ASMT-MR00-AHJ00
LED MOONSTONE RED 628NMManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More

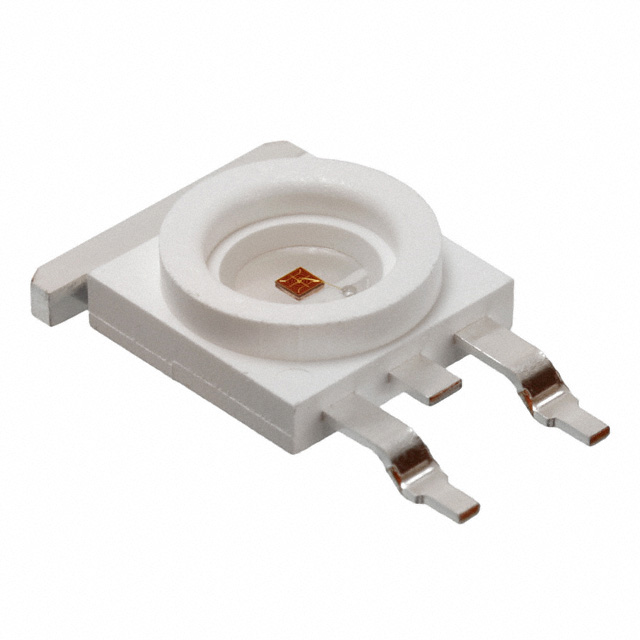

Broadcom Limited Moonstone™ ASMT-MR00-AHJ00 is a red LED with a typical wavelength of 628nm (620nm to 635nm). This surface-mount device, housed in a TO-252-3, DPAK (SC-63) package, offers a luminous flux of 45 lumens at 350mA test current and 2.4V forward voltage, with a luminous efficacy of 54 lm/W. The viewing angle is 120°, and the component measures 8.50mm x 8.50mm with a maximum seated height of 3.40mm. This LED is suitable for various lighting applications, including automotive, general illumination, and signage. It is supplied in tubes.
Additional Information
Series: Moonstone™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Color | Red |
| Wavelength | 628nm (620nm ~ 635nm) |
| Size / Dimension | 0.335"" L x 0.335"" W (8.50mm x 8.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 350mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 54 lm/W |
| Height - Seated (Max) | 0.134"" (3.40mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 45lm (33lm ~ 56lm) |
