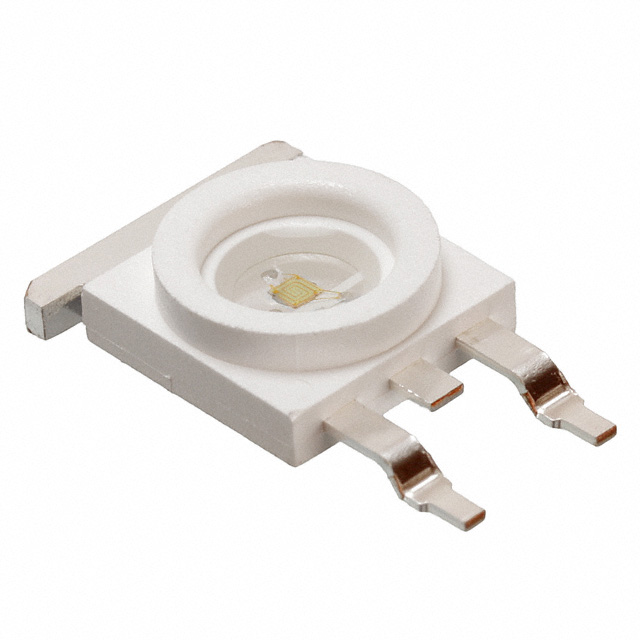

ASMT-MG00-NJK00
LED MOONSTONE GREEN 525NMManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMT-MG00-NJK00 is a Moonstone™ series LED designed for high-performance lighting applications. This surface-mount component features a green light emission with a typical wavelength of 525nm (515nm to 535nm). Operating at a test current of 350mA, it delivers a luminous flux of 58 lumens (43lm to 73lm) with a luminous efficacy of 46 lm/W at 25°C. The TO-252-3, DPAK (SC-63) package offers robust thermal management. Key specifications include a forward voltage of 3.6V and a wide 120° viewing angle. This component is suitable for use in automotive, signage, and general illumination sectors.
Additional Information
Series: Moonstone™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Color | Green |
| Wavelength | 525nm (515nm ~ 535nm) |
| Size / Dimension | 0.335"" L x 0.335"" W (8.50mm x 8.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 350mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 46 lm/W |
| Height - Seated (Max) | 0.134"" (3.40mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 58lm (43lm ~ 73lm) |
