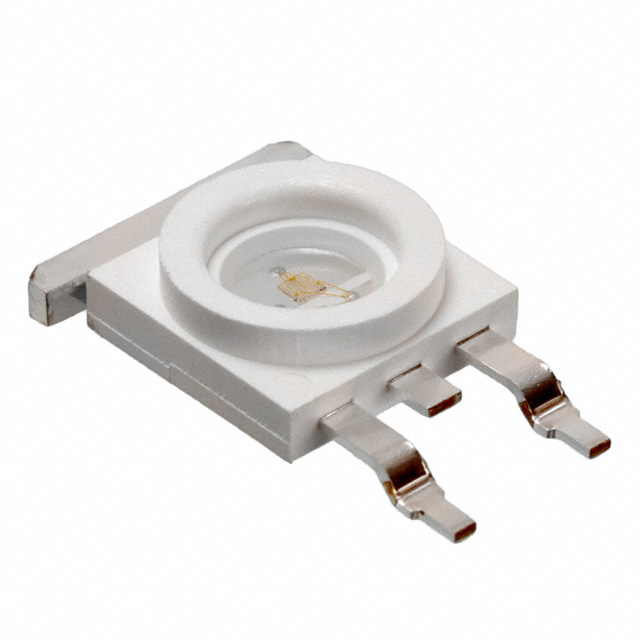

ASMT-MB00-NDF00
LED MOONSTONE BLUE 470NMManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMT-MB00-NDF00, a Moonstone™ series LED, offers a nominal 470nm blue light output with a typical forward voltage of 3.6V at 350mA test current. This component provides a luminous flux of 19 lumens (ranging from 12lm to 26lm) at 25°C and a luminous efficacy of 15 lm/W. The LED features a wide 120° viewing angle and is housed in a TO-252-3, DPAK (SC-63) surface-mount package, measuring 8.50mm x 8.50mm with a seated height of 3.40mm. Its robust design and performance characteristics make it suitable for applications in general lighting, architectural lighting, and signage.
Additional Information
Series: Moonstone™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Color | Blue |
| Wavelength | 470nm (460nm ~ 480nm) |
| Size / Dimension | 0.335"" L x 0.335"" W (8.50mm x 8.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 350mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 15 lm/W |
| Height - Seated (Max) | 0.134"" (3.40mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 19lm (12lm ~ 26lm) |
