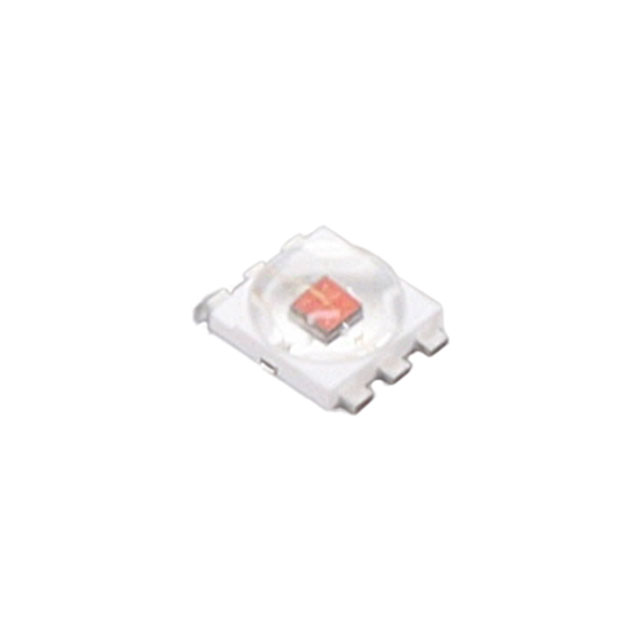

ASMT-JA30-ARS01
LED AMBER 592NM 3WManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom ASMT-JA30-ARS01 is a high-power, 3W amber LED designed for demanding illumination applications. This 6-SMD component features a flat lead exposed pad for enhanced thermal management and a compact 4.00mm x 4.00mm footprint. Emitting a peak wavelength of 592nm with a spectral band of 587nm to 597nm, it achieves a typical forward voltage of 2.1V at 350mA. At this test current, the ASMT-JA30-ARS01 delivers 54 lumens of luminous flux (40lm ~ 62lm) and an impressive efficacy of 73 lm/W. With a maximum continuous drive current of 700mA and a wide viewing angle of 165°, this LED is suitable for automotive lighting, industrial signaling, and general area illumination where robust performance and specific color output are critical. The component is supplied in Tape & Reel packaging for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Flat Lead Exposed Pad |
| Color | Amber |
| Wavelength | 592nm (587nm ~ 597nm) |
| Size / Dimension | 0.157"" L x 0.157"" W (4.00mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 350mA |
| Viewing Angle | 165° |
| Current - Max | 700mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Height - Seated (Max) | 0.077"" (1.95mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 54lm (40lm ~ 62lm) |
