ASMT-JA12-ARS01
LED ASMT-JX1X AMBER 590NMManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMT-JA12-ARS01 is an Amber LED from the ASMT-Jx1x series. This surface-mount component features a 590nm wavelength with a typical forward voltage of 2.1V. It is rated for a maximum current of 500mA, with testing performed at 350mA, yielding 65 lm/W and a typical luminous flux of 48lm at 25°C. The package is a 6-SMD, flat lead exposed pad, measuring 4.00mm x 4.00mm with a maximum seated height of 1.95mm. The viewing angle is 165°. This LED is suitable for general illumination and automotive lighting applications.
Additional Information
Series: ASMT-Jx1xRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-SMD, Flat Lead Exposed Pad |
| Color | Amber |
| Wavelength | 590nm (Typ) |
| Size / Dimension | 0.157"" L x 0.157"" W (4.00mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 350mA |
| Viewing Angle | 165° |
| Current - Max | 500mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 65 lm/W |
| Height - Seated (Max) | 0.077"" (1.95mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 48lm (Typ) |
Request a Quote
Clients Also Buy
ASMT-JN11-NUW01
LED ASMT-JX1X NEUT WHT 4000K SMD
ASMT-JN11-NWX01
LED ASMT-JX1X NEUT WHT 4000K SMD

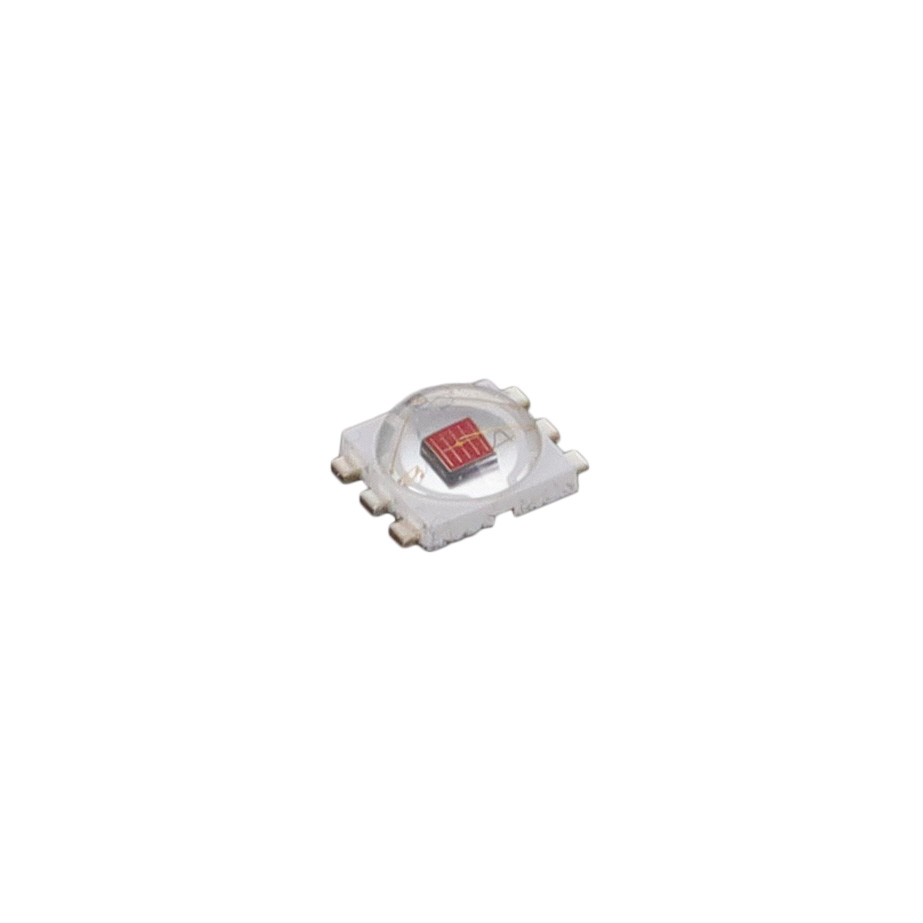

ASMT-JR10-AST01
