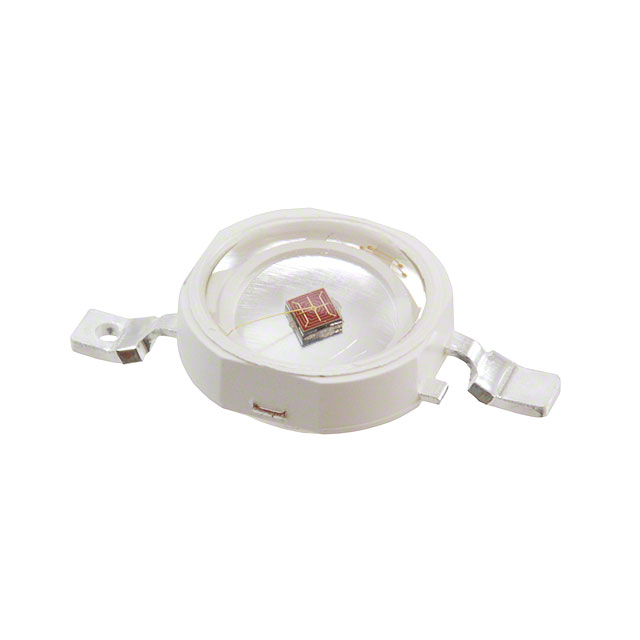

ASMT-AR00-ARS00
LED RED 628NM 1W 2SMDManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMT-AR00-ARS00 is a high-power red LED designed for demanding lighting applications. This 2-SMD, Gull Wing exposed pad component delivers a typical luminous flux of 54 lumens at 350mA test current, with a peak wavelength of 628nm. It offers excellent luminous efficacy of 73 lm/W at 25°C test temperature and a forward voltage of 2.1V. The LED has a wide 140° viewing angle and a maximum forward current of 500mA. Its compact size, 0.315" (8.00mm) diameter with a seated height of 0.165" (4.20mm), makes it suitable for surface mount integration in automotive lighting, industrial signage, and architectural illumination systems. Packaged in tubes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | Red |
| Wavelength | 628nm (620nm ~ 635nm) |
| Size / Dimension | 0.315"" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 350mA |
| Viewing Angle | 140° |
| Current - Max | 500mA |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Height - Seated (Max) | 0.165"" (4.20mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 54lm (40lm ~ 62lm) |
