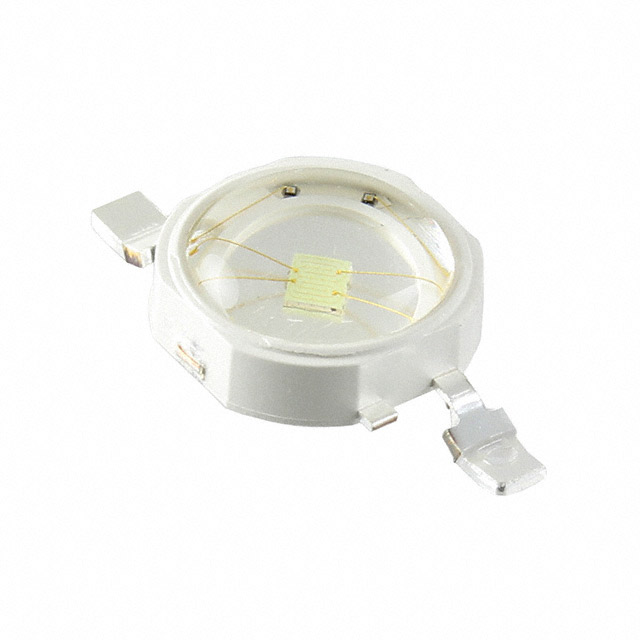

ASMT-AG00-NUV00
LED GREEN 525NM 1W 2SMDManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMT-AG00-NUV00 is a high-power green LED designed for efficient lighting applications. This 2-SMD, gull wing exposed pad component emits light with a peak wavelength of 525nm, within a range of 515nm to 535nm. Rated for a maximum current of 500mA, it achieves a luminous flux of 101 lumens at a test current of 350mA and a forward voltage of 3.2V. The device offers an impressive efficacy of 90 lumens per watt at the test conditions. Its 140° viewing angle and 0.315" diameter make it suitable for various illumination solutions. The ASMT-AG00-NUV00 is commonly utilized in automotive lighting, architectural lighting, and general illumination systems where performance and efficiency are critical. Packaged in tubes, this surface-mount device features an exposed pad for enhanced thermal management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | Green |
| Wavelength | 525nm (515nm ~ 535nm) |
| Size / Dimension | 0.315"" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 140° |
| Current - Max | 500mA |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 90 lm/W |
| Height - Seated (Max) | 0.165"" (4.20mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 101lm (87lm ~ 114lm) |
