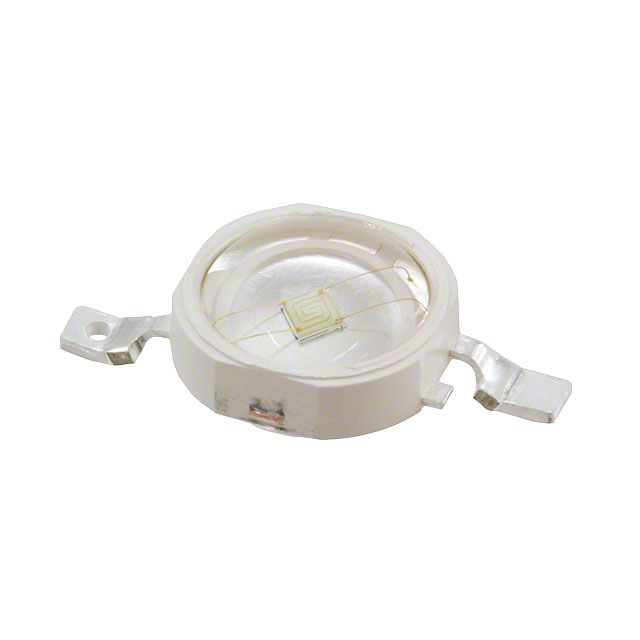

ASMT-AG00-NST00
LED GREEN 525NM 1W 2SMDManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
The Broadcom Limited ASMT-AG00-NST00 is a high-efficiency, 1W green LED designed for demanding lighting applications. Emitting at a wavelength of 525nm with a typical viewing angle of 140°, this component offers a luminous flux of 70 lumens at 350mA test current, achieving 63 lumens per watt. It features a 2-SMD, gull wing exposed pad package for robust surface mounting. The LED operates with a typical forward voltage of 3.2V and a maximum continuous current of 500mA. Its compact dimensions, with a diameter of 0.315 inches and a seated height of 0.165 inches, make it suitable for space-constrained designs. This component is commonly utilized in general illumination, automotive lighting, and display backlighting industries.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | Green |
| Wavelength | 525nm (515nm ~ 535nm) |
| Size / Dimension | 0.315"" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 140° |
| Current - Max | 500mA |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 63 lm/W |
| Height - Seated (Max) | 0.165"" (4.20mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 70lm (52lm ~ 87lm) |
