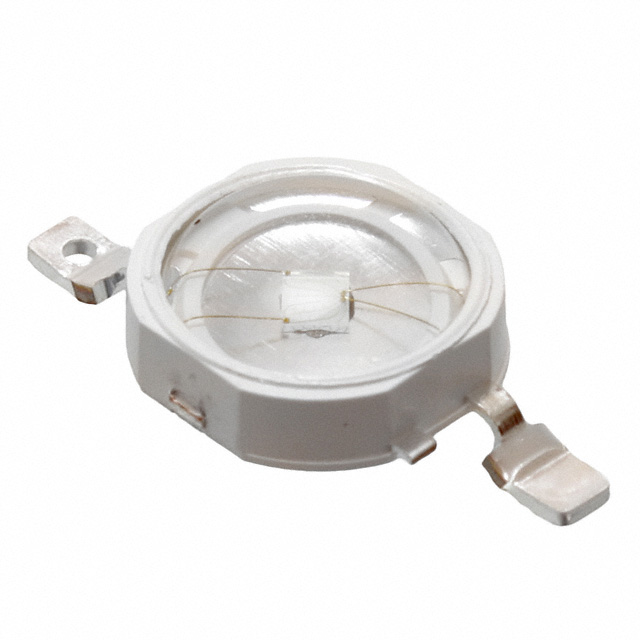

ASMT-AB31-NMP00
LED BLUE 460NM 2SMDManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
LED Lighting Color - Blue 460nm (Typ) 2-SMD, Gull Wing Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | Blue |
| Wavelength | 460nm (Typ) |
| Size / Dimension | 0.315"" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 140° |
| Current - Max | 700mA |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 16 lm/W |
| Height - Seated (Max) | 0.165"" (4.20mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 18lm (Typ) |
