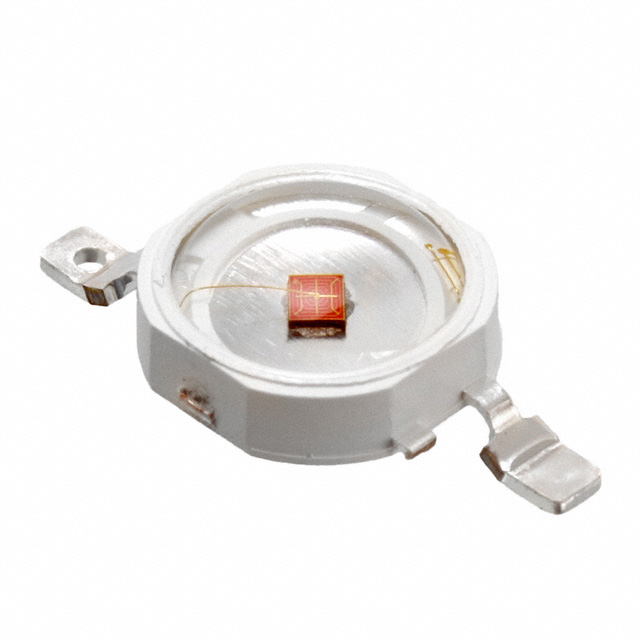

ASMT-AA30-ARS00
LED AMBER 590NM 2SMDManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMT-AA30-ARS00, a high-efficiency amber LED, delivers 54 lumens at 350mA with a typical forward voltage of 2.1V. This component features a 140° viewing angle and operates with a maximum continuous current of 700mA, while its test current is specified at 350mA for performance verification. The wavelength range is 587nm to 597nm, centered at 590nm, and it achieves 73 lm/W at the test current. Housed in a 2-SMD, Gull Wing Exposed Pad package with dimensions of 0.315" (8.00mm) diameter and a seated height of 0.165" (4.20mm), this LED is designed for surface mounting. It is supplied in tube packaging. This device finds application in automotive lighting, industrial signaling, and general illumination solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 2-SMD, Gull Wing Exposed Pad |
| Color | Amber |
| Wavelength | 590nm (587nm ~ 597nm) |
| Size / Dimension | 0.315"" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 350mA |
| Viewing Angle | 140° |
| Current - Max | 700mA |
| Supplier Device Package | 2-SMD |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Height - Seated (Max) | 0.165"" (4.20mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 54lm (40lm ~ 62lm) |
