ASMG-ST00-00001

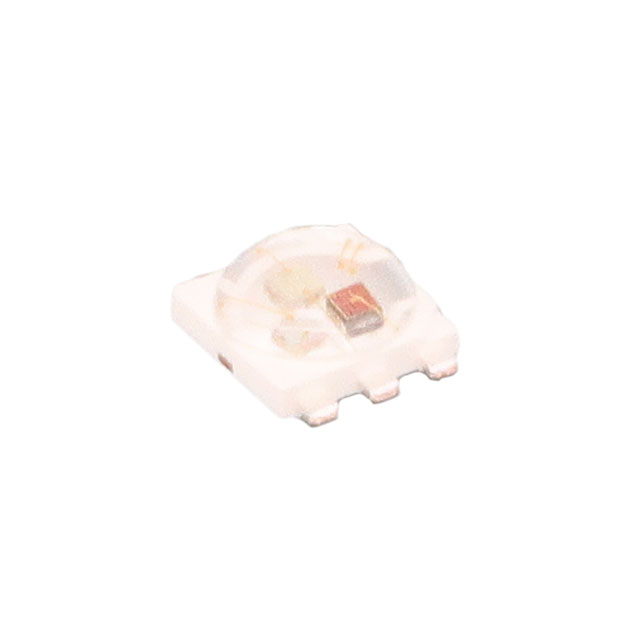

LED 3W TRI-COLOR HIGH POWERManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASMG-ST00-00001 is a 3W Tri-Color High Power LED designed for advanced lighting applications. This 6-SMD component offers independent control of Red (623nm), Green (525nm), and Blue (465nm) wavelengths, enabling a wide color gamut. Each color channel supports a maximum continuous current of 350mA, with typical forward voltages of 2.2V for Red, and 3.4V for Green and Blue at 25°C. At 350mA test current, luminous flux is rated at 55lm (Red), 95lm (Green), and 20lm (Blue), with corresponding efficacy of 71 lm/W (Red), 80 lm/W (Green), and 17 lm/W (Blue). The LED features a compact 6.00mm x 6.00mm footprint with a seated height of 2.20mm. Viewing angles vary by color, with 135° for Red and Blue, and 170° for Green. This component is supplied in Tape & Reel packaging and finds application in architectural lighting, entertainment lighting, and display backlighting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD |
| Color | Red, Green, Blue (RGB) |
| Wavelength | 623nm Red, 525nm Green, 465nm Blue |
| Size / Dimension | 0.236"" L x 0.236"" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.4V Green, 3.4V Blue |
| Current - Test | 350mA |
| Viewing Angle | 135° Red, 170° Green, 135° Blue |
| Current - Max | 350mA |
| Supplier Device Package | - |
| Lumens/Watt @ Current - Test | 71 lm/W Red, 80 lm/W Green, 17 lm/W Blue |
| Height - Seated (Max) | 0.087"" (2.20mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 55lm Red, 95lm Green, 20lm Blue |
