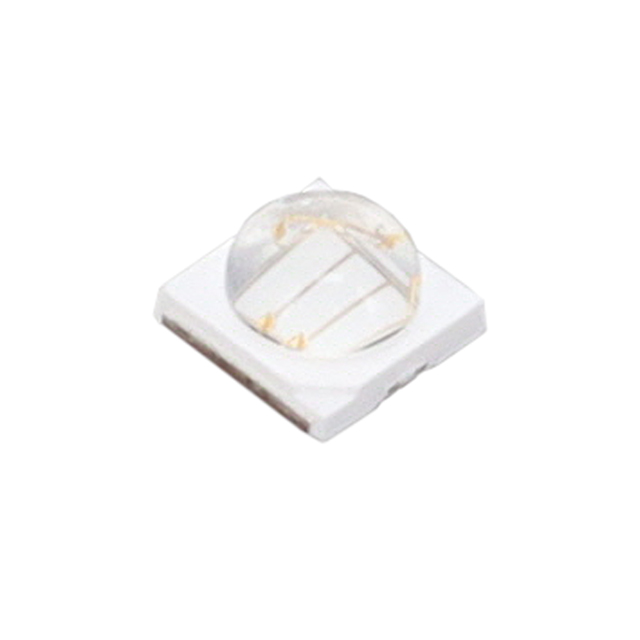

ASM6-SLD2-NTV0H
LED ASM6-SXXX-XXXXH BLU 3SMDManufacturer: Broadcom Limited
Categories: LED Color Lighting
Quality Control: Learn More
Broadcom Limited ASM6-SLD2-NTV0H is a Royal Blue LED from the ASM6-Sxxx-xxxxH series. This 3-SMD, No Lead component features a wavelength of 450nm, with a specified range of 440nm to 460nm. The device is designed for surface mounting and comes in a 3-SMD, No Lead package. Key electrical characteristics include a typical forward voltage (Vf) of 2.9V, a maximum continuous current of 1A, and a test current of 350mA. At 350mA and 25°C, the luminous flux is specified as 730mW, with a range of 610mW to 930mW. The LED has a wide viewing angle of 130°. The dimensions of the component are 0.136 inches by 0.136 inches (3.45mm x 3.45mm), with a seated height not exceeding 0.083 inches (2.10mm). This component is supplied in Tape & Reel (TR) packaging. Typical applications for this type of LED include general illumination and display backlighting.
Additional Information
Series: ASM6-Sxxx-xxxxHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Color | Royal Blue |
| Wavelength | 450nm (440nm ~ 460nm) |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 350mA |
| Viewing Angle | 130° |
| Current - Max | 1A |
| Supplier Device Package | 3-SMD |
| Lumens/Watt @ Current - Test | - |
| Height - Seated (Max) | 0.083"" (2.10mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 730mW (610mW ~ 930mW) |
Request a Quote
Clients Also Buy

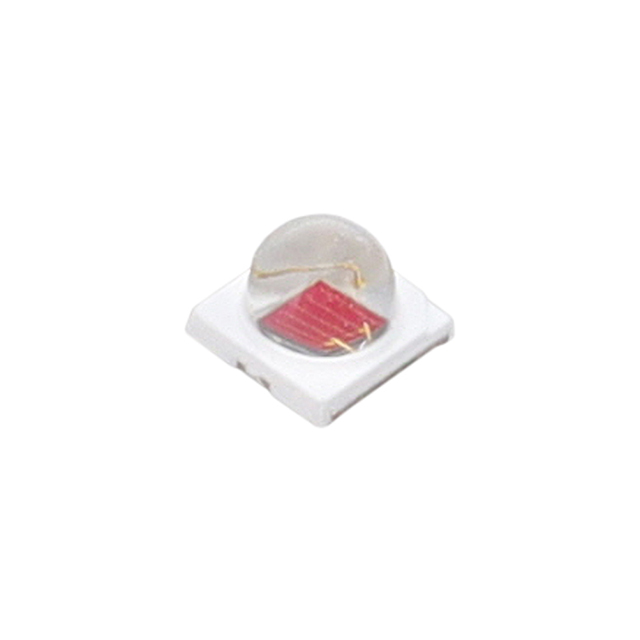

ASM6-S390-ANQ0H
LED ASM6-SXXX-XXXXH FAR RED 3SMD

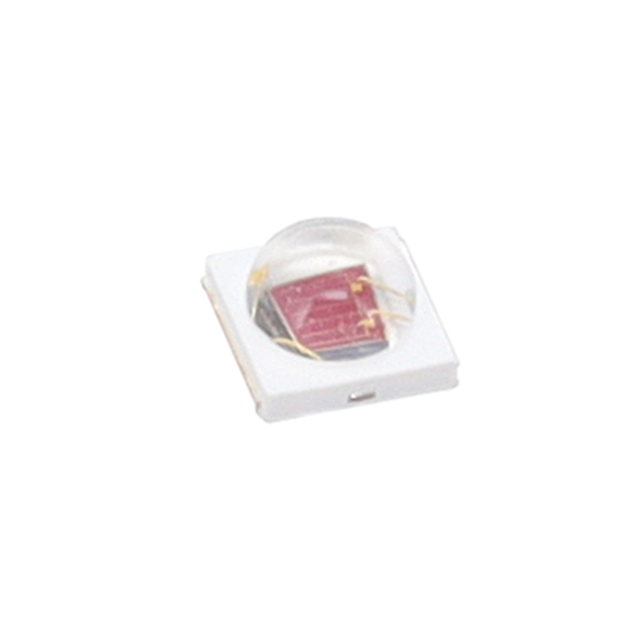

ASM6-S3D0-ANQ0H
LED ASM6-SXXX-XXXXH FAR RED 3SMD

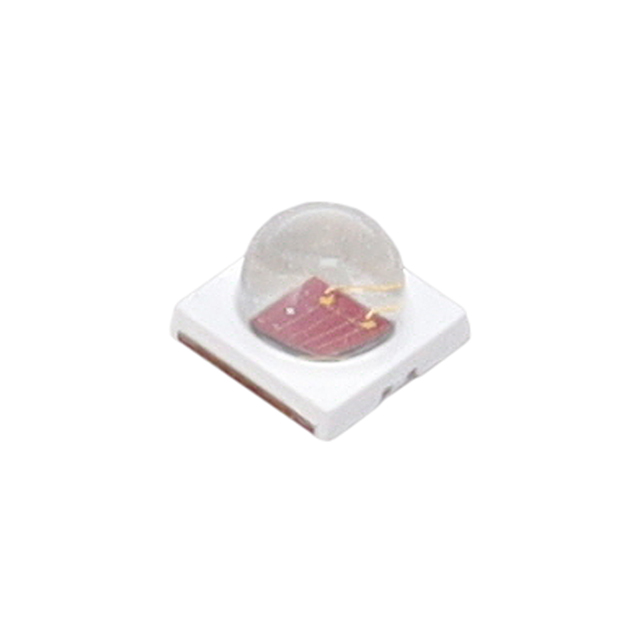

ASM6-SD90-AQR0H
