HDSP-U501-KL000
DISPLAY 7SEG 0.31"" SGL GRN 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

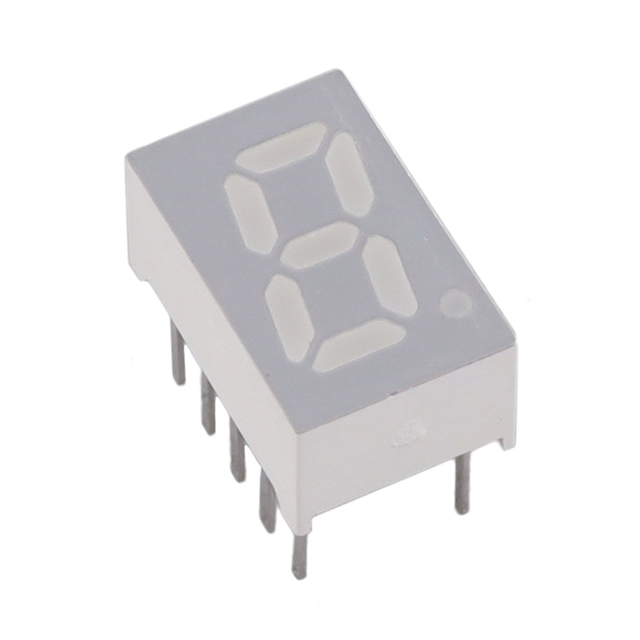

Broadcom Limited HDSP-U501-KL000, a single-digit 7-segment display module from the HDSP-U5xx series, offers a bright green illumination with a typical forward voltage of 2.1V at 10mA. This component features a 0.32-inch character height and a peak wavelength of 572nm, delivering 11mcd luminous intensity. Designed with a common anode configuration and packaged in a 10-DIP format with a 0.209-inch pin spacing, it provides a compact solution for various display applications. The overall dimensions are 0.433 inches high by 0.280 inches wide, with a depth of 0.197 inches. This display module is suitable for use in industrial control systems, instrumentation, and point-of-sale equipment where clear numerical indication is critical. The maximum power dissipation is rated at 75mW.
Additional Information
Series: HDSP-U5xxRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.209"", 5.30mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.433"" H x 0.280"" W x 0.197"" D (11.00mm x 7.10mm x 5.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 11mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.32"" (8.00mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 10mA |
| Wavelength - Peak | 572nm |
| Power Dissipation (Max) | 75mW |
