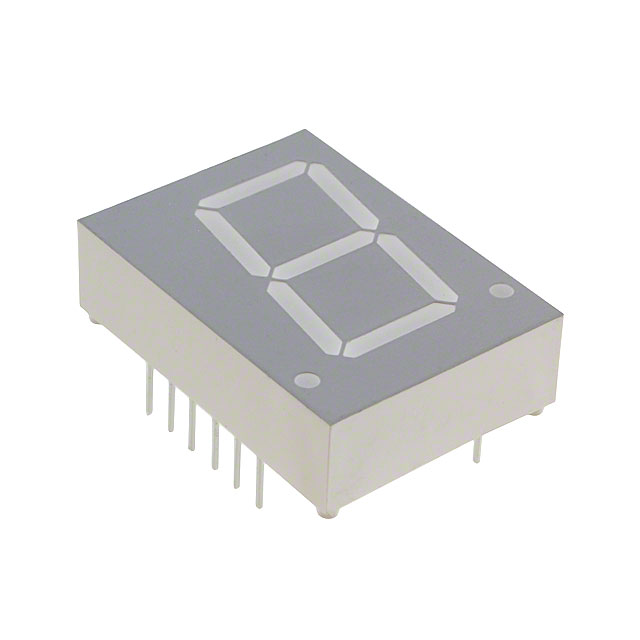

HDSP-N103
DISPLAY 7-SEG 0.8"" SGL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.7V 5mA 1.090"" H x 0.786"" W x 0.330"" D (27.69mm x 19.96mm x 8.38mm) 18-DIP (0.600"", 15.24mm), 12 Leads
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm), 12 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.090"" H x 0.786"" W x 0.330"" D (27.69mm x 19.96mm x 8.38mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.5mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 5mA |
| Wavelength - Peak | 645nm |
| Power Dissipation (Max) | 37mW |
