HDSP-H5A3
DISPLAY 7SEG 0.52"" SGL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

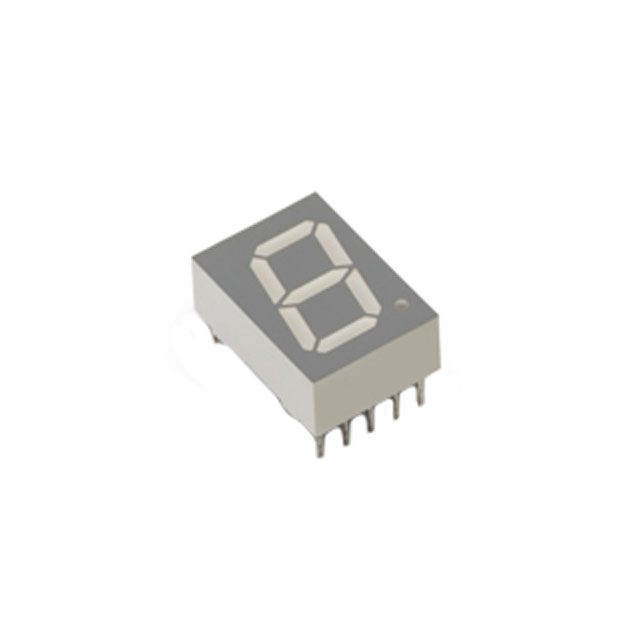

Broadcom Limited HDSP-H5A3 is a single-digit, 7-segment display module featuring a red LED character. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2V at 20mA test current, achieving a millicandela rating of 35mcd. The digit size is 0.52 inches (13.21mm). The module is housed in a 10-DIP package with a standard 0.600" (15.24mm) lead pitch. Its dimensions are 0.693" (17.60mm) height, 0.488" (12.40mm) width, and 0.272" (6.90mm) depth. The peak wavelength for the red illumination is 644nm. This display is suitable for use in industrial control systems, instrumentation, and point-of-sale equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.693"" H x 0.488"" W x 0.272"" D (17.60mm x 12.40mm x 6.90mm) |
| Number of Characters | 1 |
| Millicandela Rating | 35mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.52"" (13.21mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 644nm |
| Power Dissipation (Max) | 52mW |
