HDSP-H3G3
DISPLAY 7SEG 0.36"" SGL GRN 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

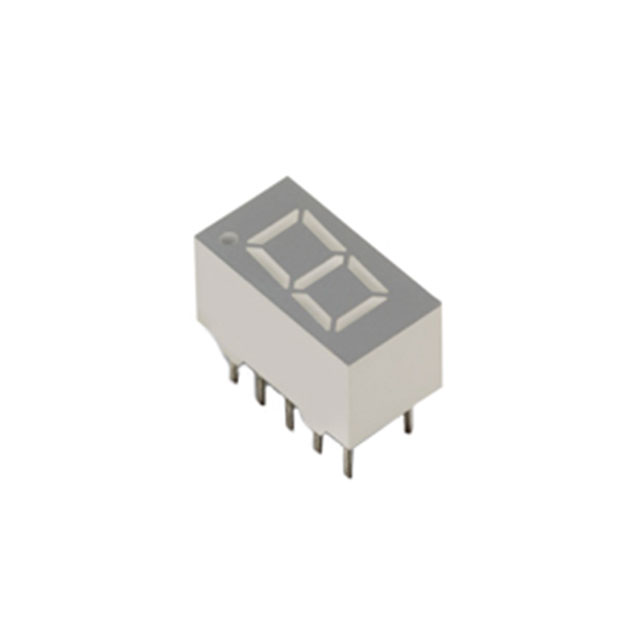

Broadcom Limited HDSP-H3G3 is a single-digit, 7-segment display module featuring a vibrant green illumination. This component is designed with a common cathode configuration and operates at a typical forward voltage of 2V with a tested current of 20mA. The character height measures 0.36 inches (9.14mm), and the overall module dimensions are 0.551 inches high by 0.295 inches wide by 0.335 inches deep (14.00mm x 7.50mm x 8.50mm). The HDSP-H3G3 is housed in a 10-DIP package with a 0.200-inch (5.08mm) pin spacing. With a peak wavelength of 570nm and a millicandela rating of 5mcd, this display is suitable for various industrial and consumer electronics applications where clear numeric or alphanumeric indication is required. Power dissipation is rated at a maximum of 52mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.200"", 5.08mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.551"" H x 0.295"" W x 0.335"" D (14.00mm x 7.50mm x 8.50mm) |
| Number of Characters | 1 |
| Millicandela Rating | 5mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.36"" (9.14mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 570nm |
| Power Dissipation (Max) | 52mW |
