HDSP-H2A1
DISPLAY 7-SEG 2.3"" SGL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

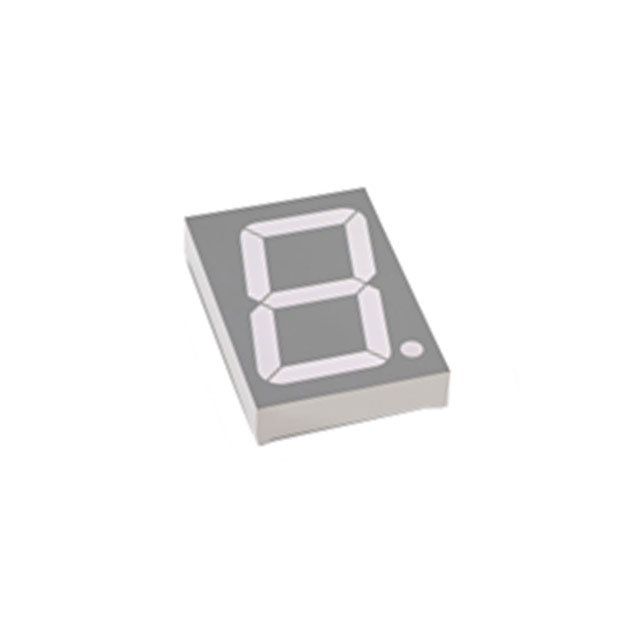

Broadcom Limited HDSP-H2A1 is a single-digit, 7-segment display module featuring a bright red LED character. This component is designed with a common anode configuration and operates with a typical forward voltage of 4V and a test current of 20mA, achieving a luminous intensity of 95mcd. The digit size is a substantial 2.30 inches (58.42mm), with overall module dimensions of 2.744 inches high by 1.882 inches wide by 0.472 inches deep. Packaged in a 10-DIP format, the HDSP-H2A1 is suitable for applications requiring clear, large numeric displays, commonly found in industrial control, instrumentation, and point-of-sale systems. The peak wavelength of the emitted light is 644nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (2.370"", 60.20mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 2.744"" H x 1.882"" W x 0.472"" D (69.70mm x 47.80mm x 12.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 95mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 2.30"" (58.42mm) |
| Voltage - Forward (Vf) (Typ) | 4V |
| Current - Test | 20mA |
| Wavelength - Peak | 644nm |
| Power Dissipation (Max) | 208mW |
