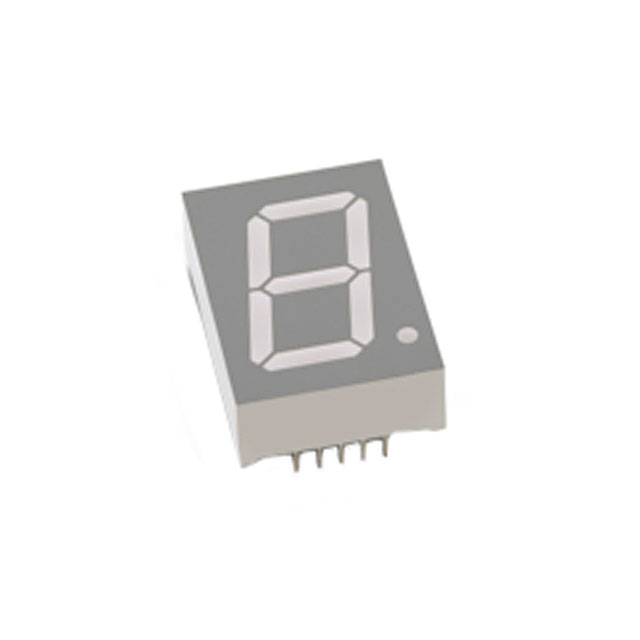

HDSP-H1A1
DISPLAY 7-SEG 1"" SGL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 1.339"" H x 0.945"" W x 0.413"" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.200"", 30.48mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (1.200"", 30.48mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.339"" H x 0.945"" W x 0.413"" D (34.00mm x 24.00mm x 10.50mm) |
| Number of Characters | 1 |
| Millicandela Rating | 70mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 1.00"" (25.40mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 644nm |
| Power Dissipation (Max) | 104mW |
Request a Quote
Clients Also Buy
ADSP-H3E1
DISPLAY 7SEG 0.36"" SGL RED 10DIP
HDSP-3606
DISP 7SEG 0.3"" OV/FL GRN 14DIP

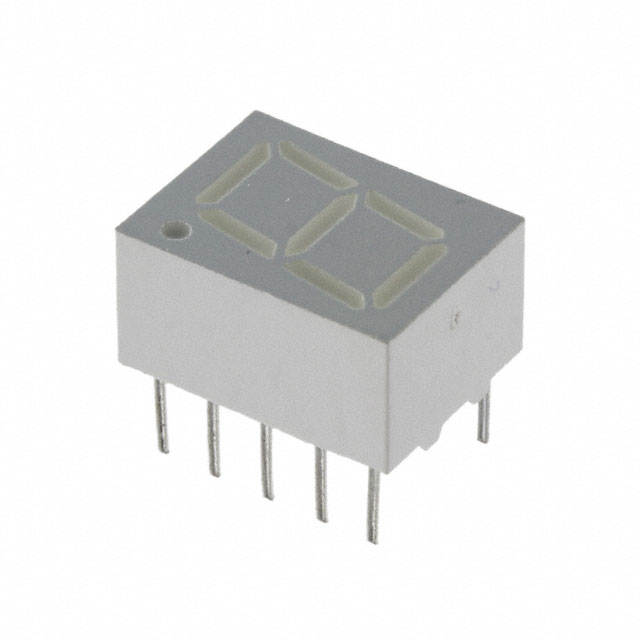

HDSP-7513-CD000
