HDSP-H108
DISP 7SEG 0.56"" OV/FL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

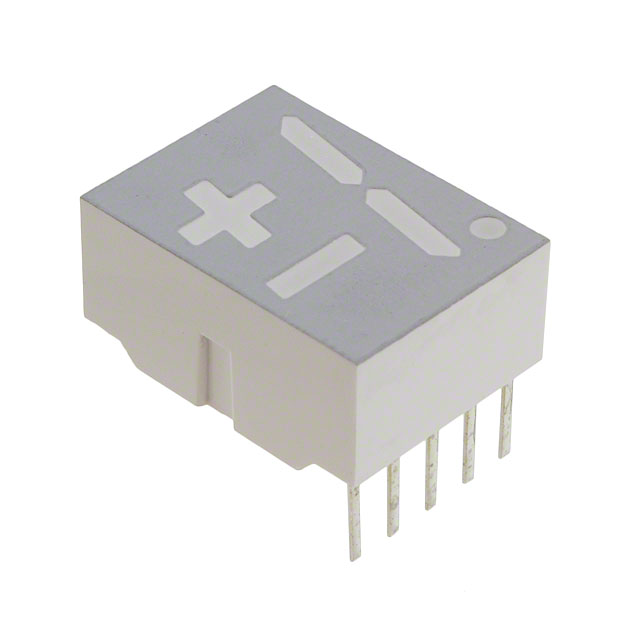

Broadcom Limited HDSP-H108 is a red 7-segment alphanumeric display module featuring a +/-1 overflow character. This component utilizes a common cathode configuration and operates with a typical forward voltage of 1.7V at 5mA test current, delivering 4.2mcd luminous intensity. The digit/alpha size measures 0.56 inches (14.22mm). Housed in a 10-DIP package with 9 leads and 0.600-inch (15.24mm) pin spacing, its dimensions are 0.670 inches (17.02mm) high, 0.495 inches (12.57mm) wide, and 0.315 inches (8.00mm) deep. The maximum power dissipation is rated at 37mW. This display module finds application in industrial control systems and instrumentation where clear numeric indication is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm), 9 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.670"" H x 0.495"" W x 0.315"" D (17.02mm x 12.57mm x 8.00mm) |
| Number of Characters | +/-1 (overflow) |
| Millicandela Rating | 4.2mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Current - Test | 5mA |
| Wavelength - Peak | 645nm |
| Power Dissipation (Max) | 37mW |
