HDSP-F303-EF016
S4,0.4S,YEL,CCManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-F303-EF016 from the HDSP-Fxxx series is a single-digit, 7-segment display module featuring a yellow LED character. This component is designed with a common cathode configuration and operates at a typical forward voltage of 2.2V with a test current of 20mA, achieving a millicandela rating of 0.8mcd. The digit height is 0.40 inches (10.16mm). The module's dimensions are 0.508 inches H x 0.385 inches W x 0.250 inches D (12.90mm x 9.79mm x 6.36mm). It is housed in a 10-DIP package with 0.300-inch (7.62mm) lead spacing. Peak wavelength is 583nm, and maximum power dissipation is 80mW. This display module finds application in industrial control equipment, instrumentation, and automotive displays.
Additional Information
Series: HDSP-FxxxRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.508"" H x 0.385"" W x 0.250"" D (12.90mm x 9.79mm x 6.36mm) |
| Number of Characters | 1 |
| Millicandela Rating | 0.8mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 583nm |
| Power Dissipation (Max) | 80mW |
Request a Quote
Clients Also Buy
HDSP-F151-NO000
LED

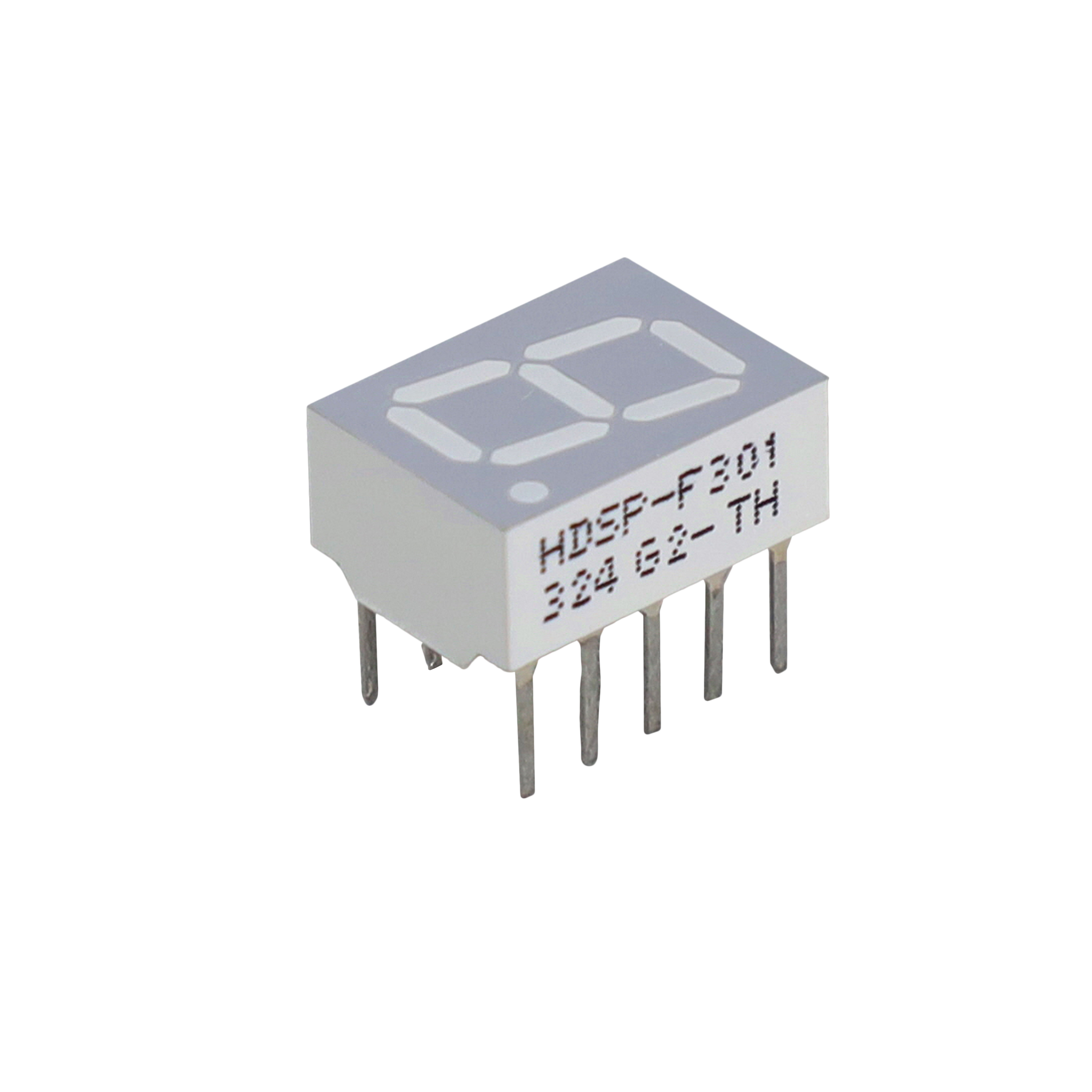

HDSP-F301-GH000
