HDSP-B04E
DISP 7SEG 0.56"" QUAD RED 12DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

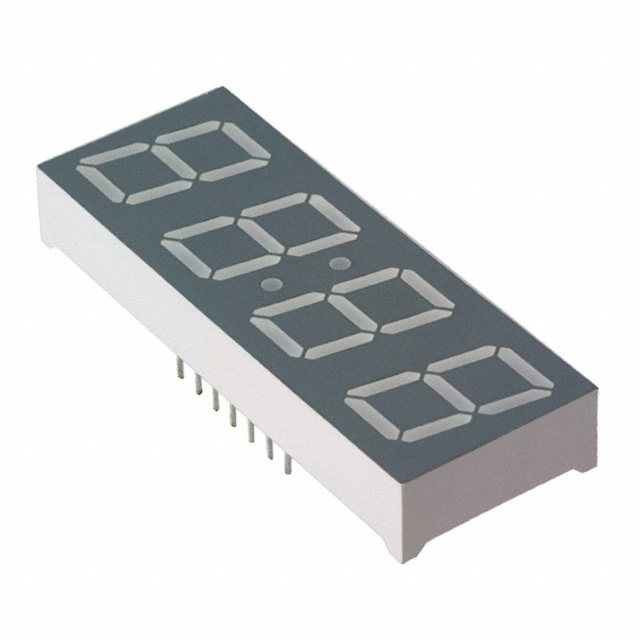

Broadcom Limited HDSP-B04E is a 4-digit, 0.56-inch red 7-segment display module. This common anode device features a typical forward voltage of 2.05V and a test current of 20mA, delivering a millicandela rating of 5.5mcd. The module's overall dimensions are 0.752 inches high by 2.016 inches wide by 0.315 inches deep (19.10mm x 51.20mm x 8.00mm). It is housed in a 12-DIP package with a 0.600-inch (15.24mm) pin spacing. This component is suitable for various instrumentation and display applications. The peak wavelength of the emitted light is 632nm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment Clock |
| Size / Dimension | 0.752"" H x 2.016"" W x 0.315"" D (19.10mm x 51.20mm x 8.00mm) |
| Number of Characters | 4 |
| Millicandela Rating | 5.5mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.05V |
| Current - Test | 20mA |
| Wavelength - Peak | 632nm |
| Power Dissipation (Max) | 65mW |
Request a Quote
