HDSP-A27C
DISP 14SEG 0.54"" DBL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

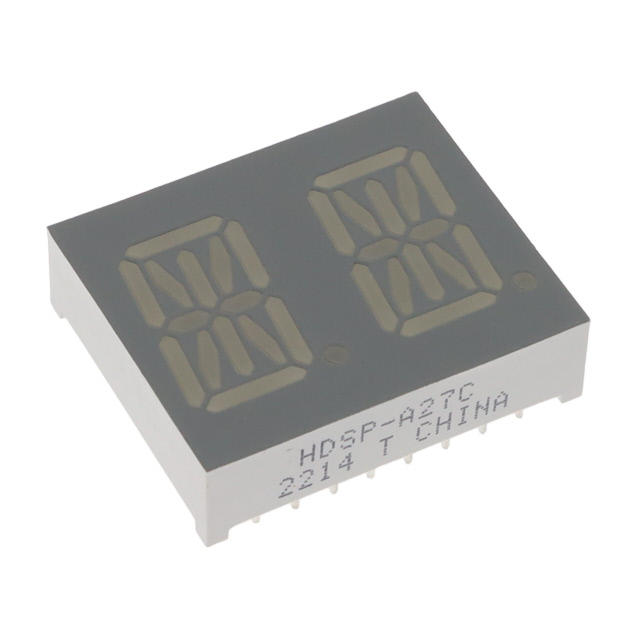

Broadcom Limited HDSP-A27C is a two-character, 14-segment alphanumeric display module featuring a common cathode configuration. Each digit offers a character height of 0.54 inches (13.72mm) and emits a distinct red light with a typical forward voltage of 1.9V at 20mA. The display exhibits a luminous intensity ranging from 18mcd to 36mcd. This device is housed in an 18-DIP package, measuring 0.827 inches (21.00mm) in height, 0.992 inches (25.20mm) in width, and 0.276 inches (7.00mm) in depth, with a standard 0.600-inch (15.24mm) pin pitch. The HDSP-A27C finds application in industrial control panels, instrumentation, and digital signage where clear numeric and alphanumeric readouts are essential.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 14-Segment, Alphanumeric |
| Size / Dimension | 0.827"" H x 0.992"" W x 0.276"" D (21.00mm x 25.20mm x 7.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 18mcd ~ 36mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.54"" (13.72mm) |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | - |
