HDSP-A22C
DISP 14SEG 0.54"" DBL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

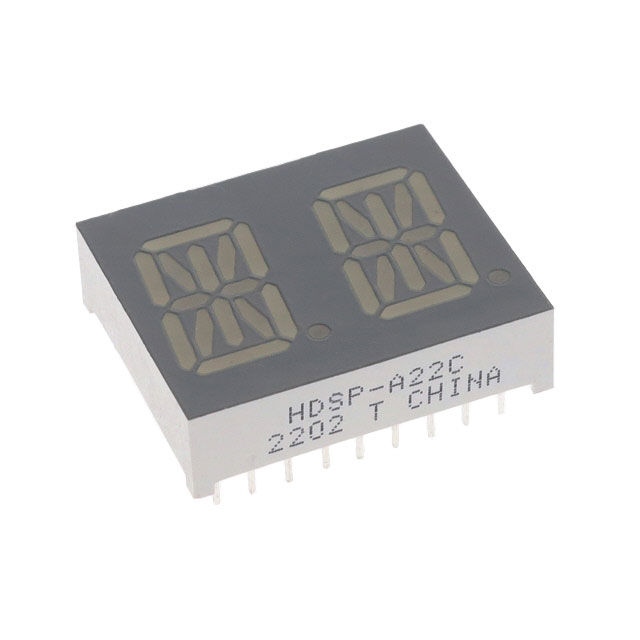

Broadcom Limited HDSP-A22C is a 14-segment, alphanumeric display module featuring two red characters, each with a digit/alpha size of 0.54 inches. This common anode component operates with a typical forward voltage of 1.9V and a test current of 20mA, achieving a millicandela rating between 18mcd and 36mcd. The module's physical dimensions are 0.827 inches high by 0.992 inches wide by 0.276 inches deep, housed in an 18-DIP package with a 0.600-inch pin spacing. The peak wavelength for the red illumination is 635nm. This component is suitable for applications in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 14-Segment, Alphanumeric |
| Size / Dimension | 0.827"" H x 0.992"" W x 0.276"" D (21.00mm x 25.20mm x 7.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 18mcd ~ 36mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.54"" (13.72mm) |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | - |
