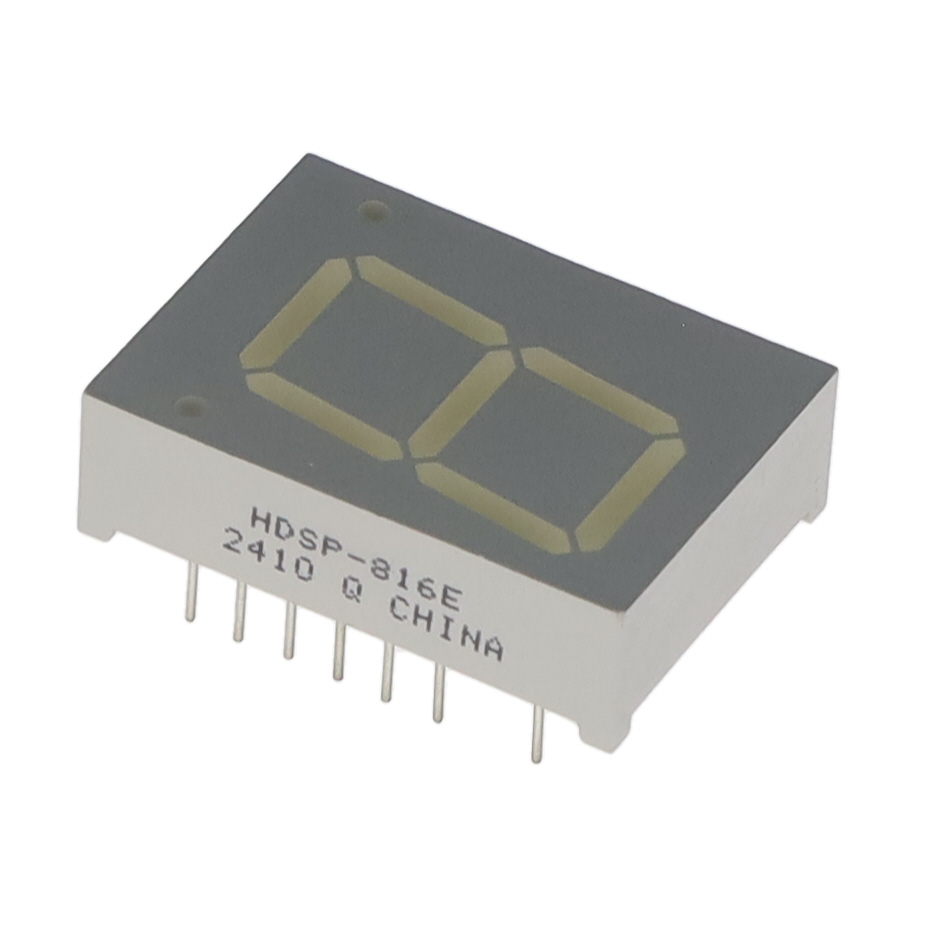

HDSP-816E
DISPLAY 7-SEG 0.8"" SGL RED 16DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-816E is a single-digit, 0.80-inch 7-segment display module featuring a red LED character. This component utilizes a common cathode configuration, with a typical forward voltage of 2.1V and a test current of 20mA. The display exhibits a peak wavelength of 635nm and a millicandela rating of 4.8mcd. The module is housed in a 16-DIP package with a 0.600-inch lead spacing and 12 leads. Its dimensions are 1.090 inches in height, 0.786 inches in width, and 0.330 inches in depth. This display is suitable for applications in industrial control, instrumentation, and point-of-sale systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-DIP (0.600"", 15.24mm), 12 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.090"" H x 0.786"" W x 0.330"" D (27.69mm x 19.96mm x 8.38mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4.8mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 62.5mW |
