HDSP-815E

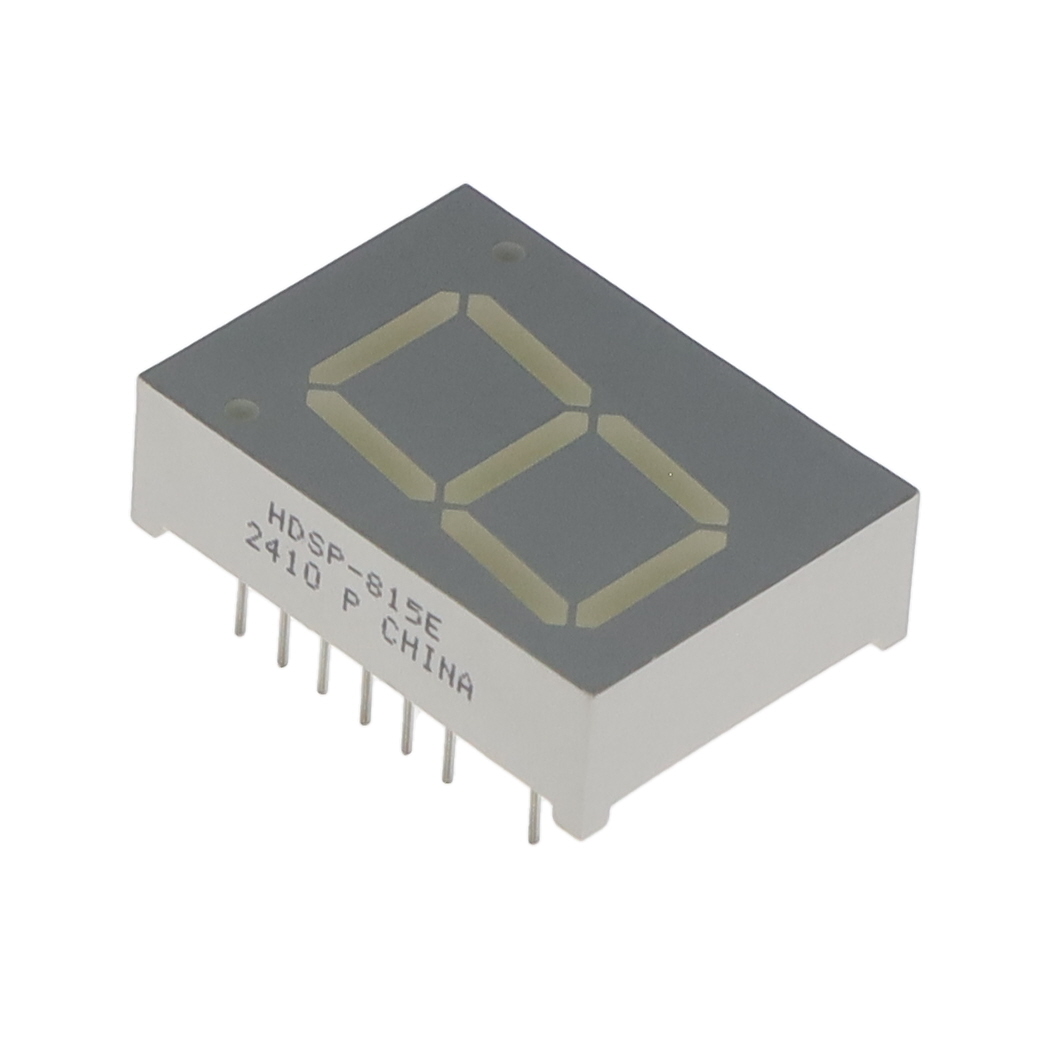

DISPLAY 7-SEG 0.8"" SGL RED 16DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
The Broadcom Limited HDSP-815E is a single-digit, 7-segment display module featuring a high-efficiency red LED. This component offers a character height of 0.80 inches (20.32mm) with a typical forward voltage of 2.1V and a test current of 20mA, producing a millicandela rating of 4.8mcd. The display utilizes a common anode configuration and is housed in a 16-DIP package with 12 leads, suitable for through-hole mounting. Its dimensions are 1.090 inches high by 0.786 inches wide by 0.330 inches deep (27.69mm x 19.96mm x 8.38mm). The HDSP-815E finds application in industrial control systems, instrumentation, and point-of-sale equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-DIP (0.600"", 15.24mm), 12 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.090"" H x 0.786"" W x 0.330"" D (27.69mm x 19.96mm x 8.38mm) |
| Number of Characters | 1 |
| Millicandela Rating | 4.8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 62.5mW |
