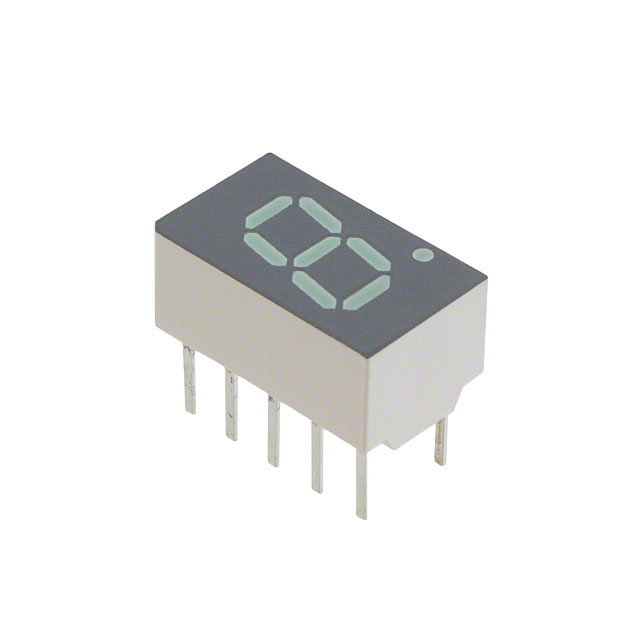

HDSP-7801
DISPLAY 7SEG 0.3"" SGL GRN 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.1V 10mA 0.500"" H x 0.300"" W x 0.240"" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200"", 5.08mm)
Additional Information
Series: HDSP-780xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.200"", 5.08mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.500"" H x 0.300"" W x 0.240"" D (12.70mm x 7.62mm x 6.09mm) |
| Number of Characters | 1 |
| Millicandela Rating | 6.8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 10mA |
| Wavelength - Peak | 566nm |
| Power Dissipation (Max) | 105mW |
