HDSP-563C
DISPLAY 7SEG 0.51"" SGL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More

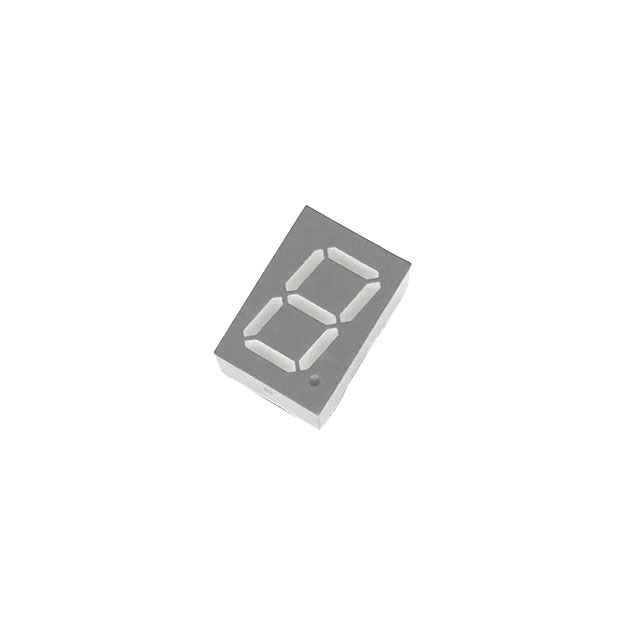

Broadcom Limited HDSP-563C is a single-digit, 7-segment display module featuring a red LED character with a digit height of 0.51 inches (13.00mm). This component utilizes a common cathode configuration and operates with a typical forward voltage of 1.9V at a test current of 20mA, producing a luminous intensity between 18mcd and 36mcd. The display's physical dimensions are 0.689 inches high by 0.482 inches wide by 0.276 inches deep (17.50mm x 12.25mm x 7.00mm). It is housed in a 10-DIP package with a lead span of 0.600 inches (15.24mm). The HDSP-563C is suitable for applications in industrial control, instrumentation, and consumer electronics requiring clear numeric indication. This component is supplied in a tube package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.689"" H x 0.482"" W x 0.276"" D (17.50mm x 12.25mm x 7.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 18mcd ~ 36mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.51"" (13.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | - |
