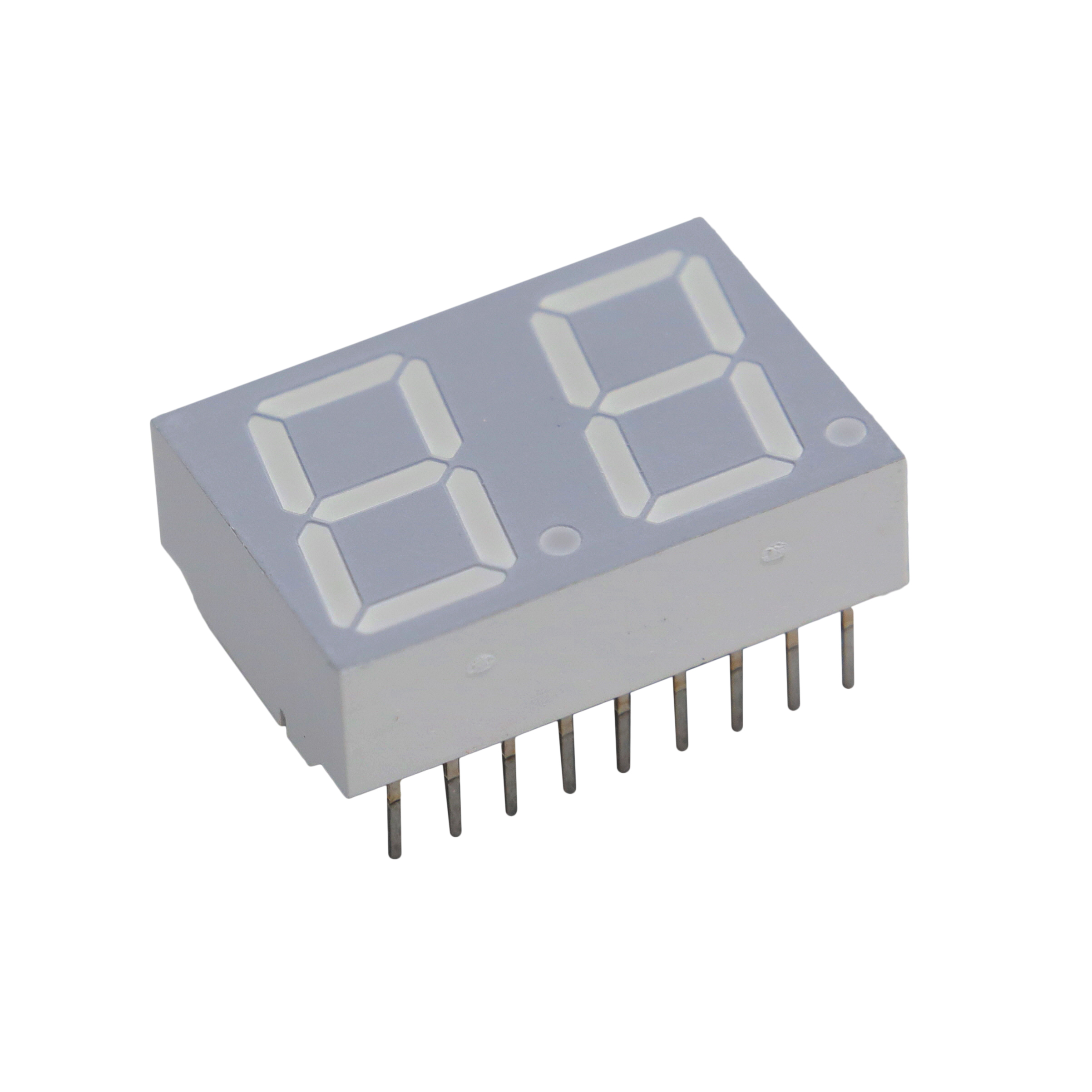

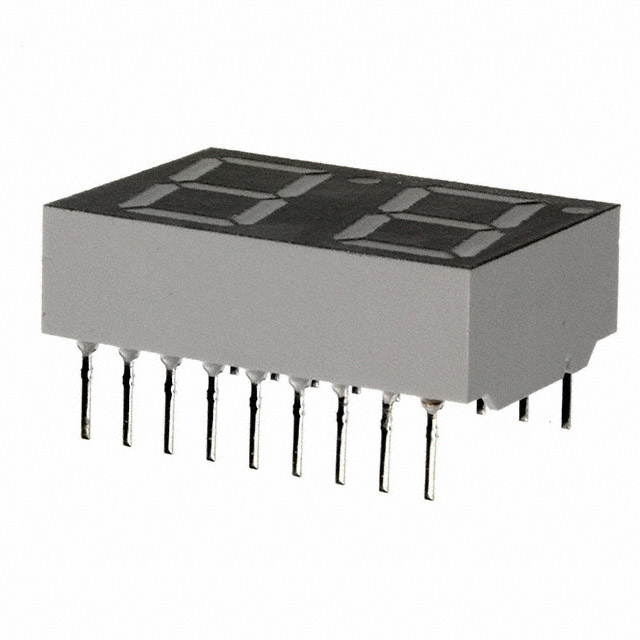

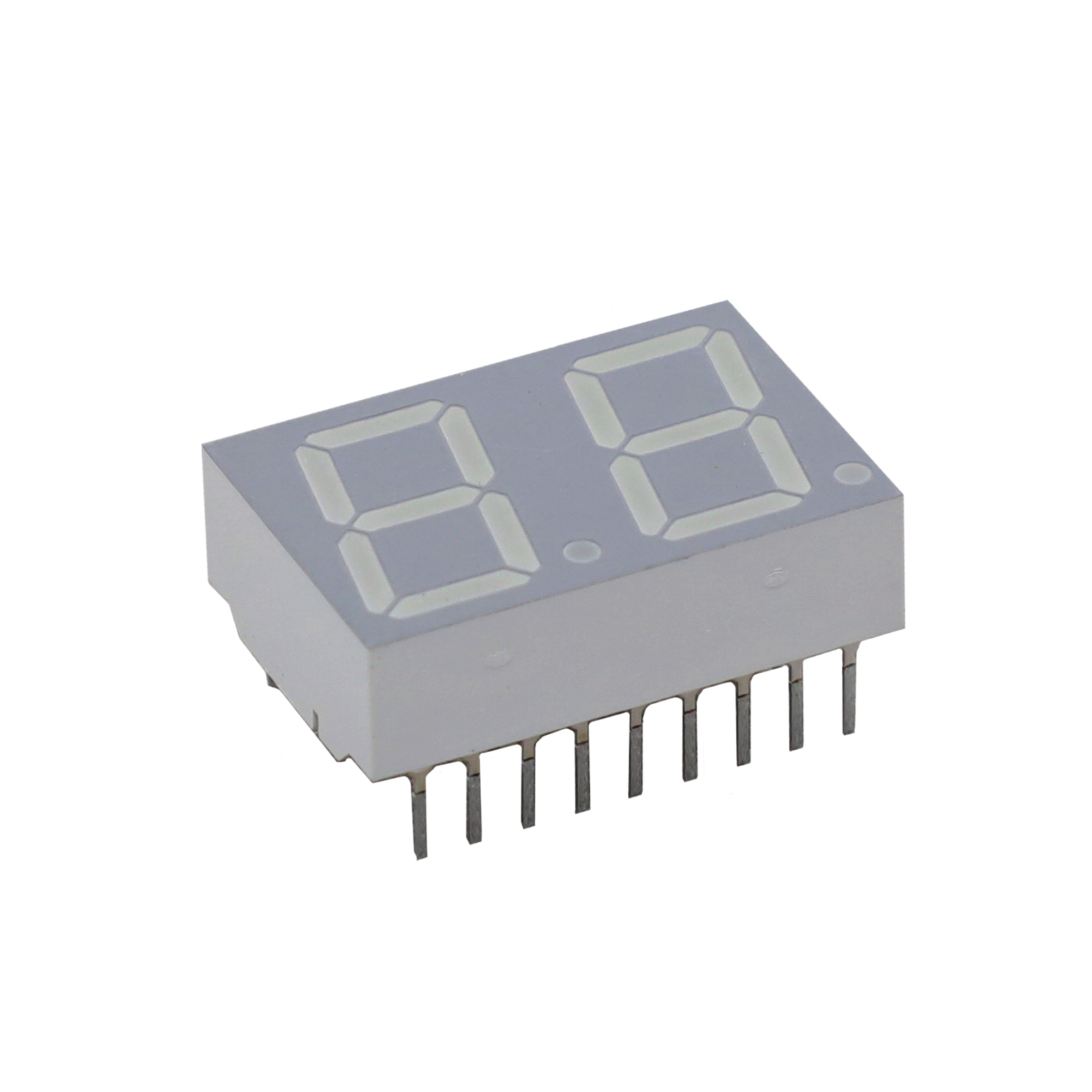

HDSP-5521
DISPLAY 7SEG 0.56"" DBL RED 18DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2.1V 20mA 0.670"" H x 0.990"" W x 0.315"" D (17.02mm x 25.15mm x 8.00mm) 18-DIP (0.600"", 15.24mm)
Additional Information
Series: HDSP-552xRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.670"" H x 0.990"" W x 0.315"" D (17.02mm x 25.15mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 2.8mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
Request a Quote
Clients Also Buy
HDSP-5521-GG000
DISPLAY 7SEG 0.56"" DBL RED 18DIP
HDSP-5521-GH000
DISPLAY 7SEG 0.56"" DBL RED 18DIP

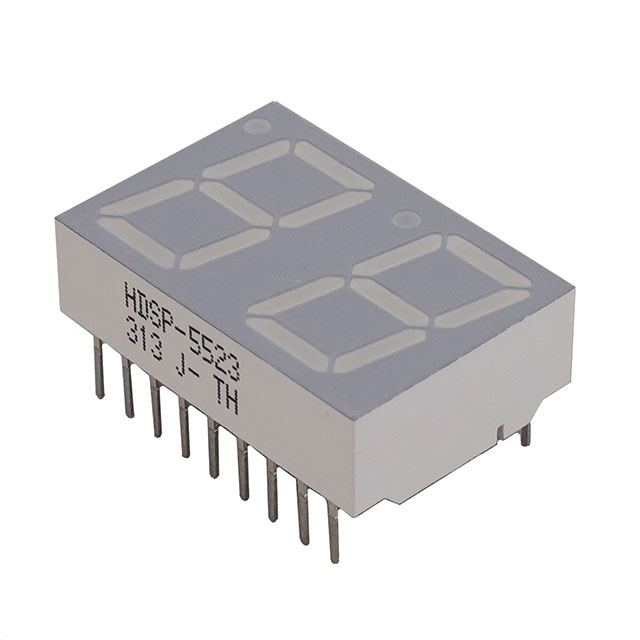

HDSP-5523-GH000
