HDSP-5508
DISP 7SEG 0.56"" OV/FL RED 10DIPManufacturer: Broadcom Limited
Categories: LED Character and Numeric
Quality Control: Learn More
Broadcom Limited HDSP-550x series HDSP-5508 is a red, 0.56-inch 7-segment display module with overflow capability. This common cathode component operates at a typical forward voltage of 2.1V and a test current of 20mA, consuming a maximum power dissipation of 105mW. The display features a peak wavelength of 635nm and a millicandela rating of 2.8mcd. Housed in a 10-DIP package with 9 leads, its dimensions are 0.670 inches high by 0.495 inches wide by 0.315 inches deep (17.02mm x 12.57mm x 8.00mm). This component is suitable for applications in industrial control systems and instrumentation.
Additional Information
Series: HDSP-550xRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 10-DIP (0.600"", 15.24mm), 9 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.670"" H x 0.495"" W x 0.315"" D (17.02mm x 12.57mm x 8.00mm) |
| Number of Characters | +/-1 (overflow) |
| Millicandela Rating | 2.8mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 635nm |
| Power Dissipation (Max) | 105mW |
Request a Quote
Clients Also Buy

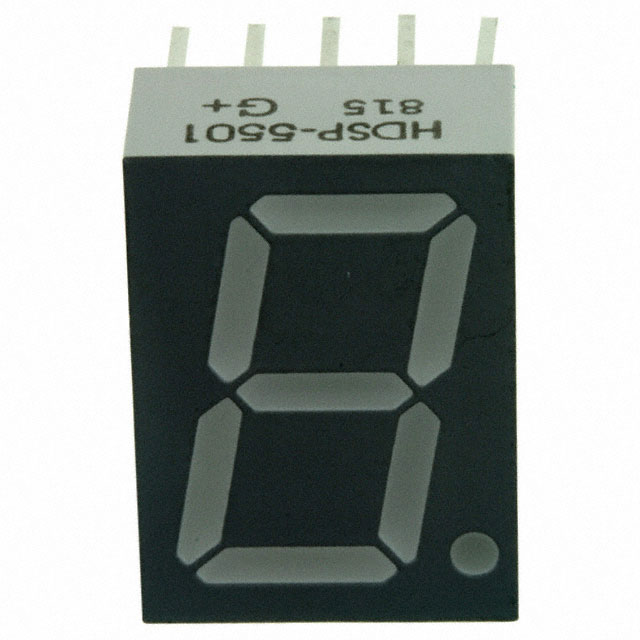

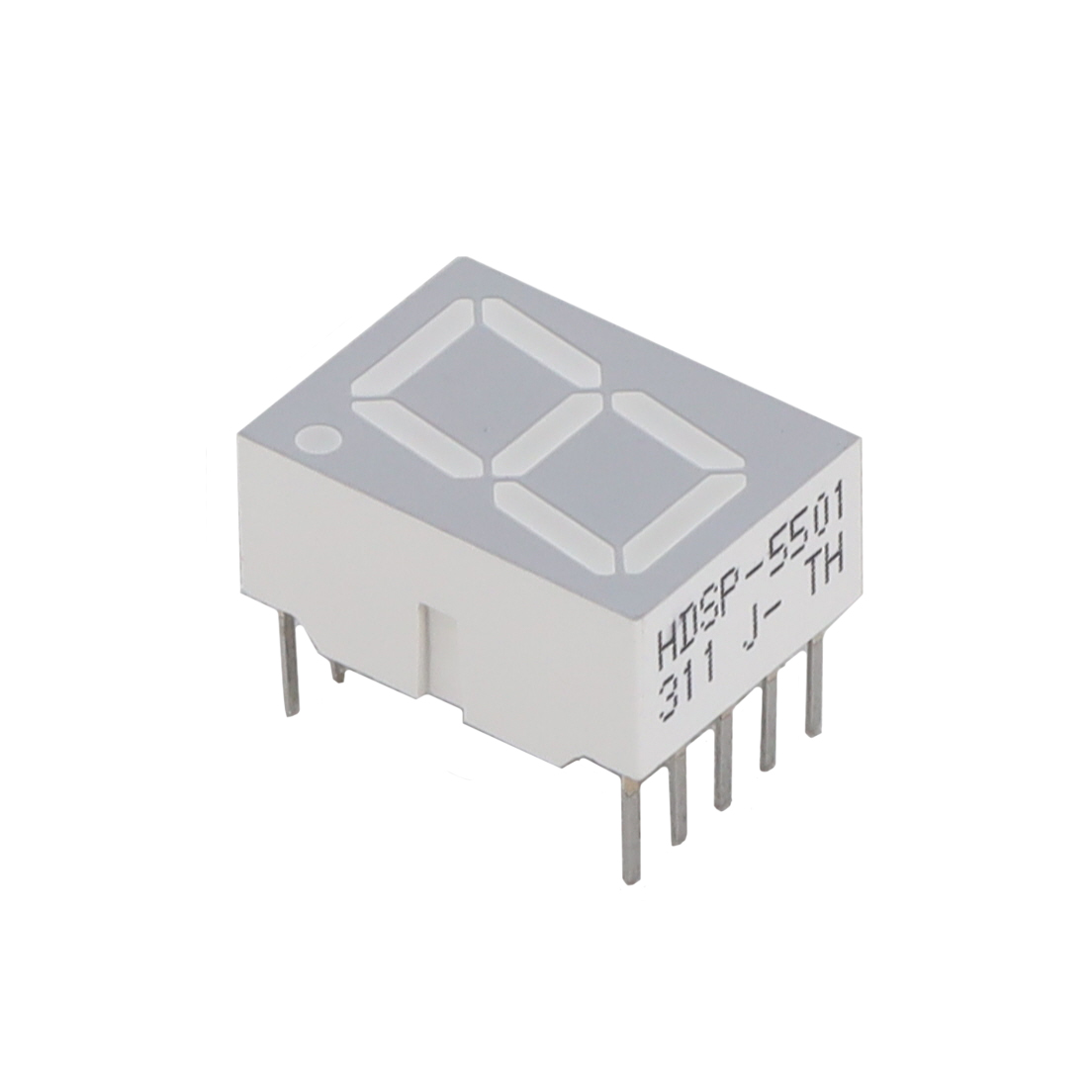

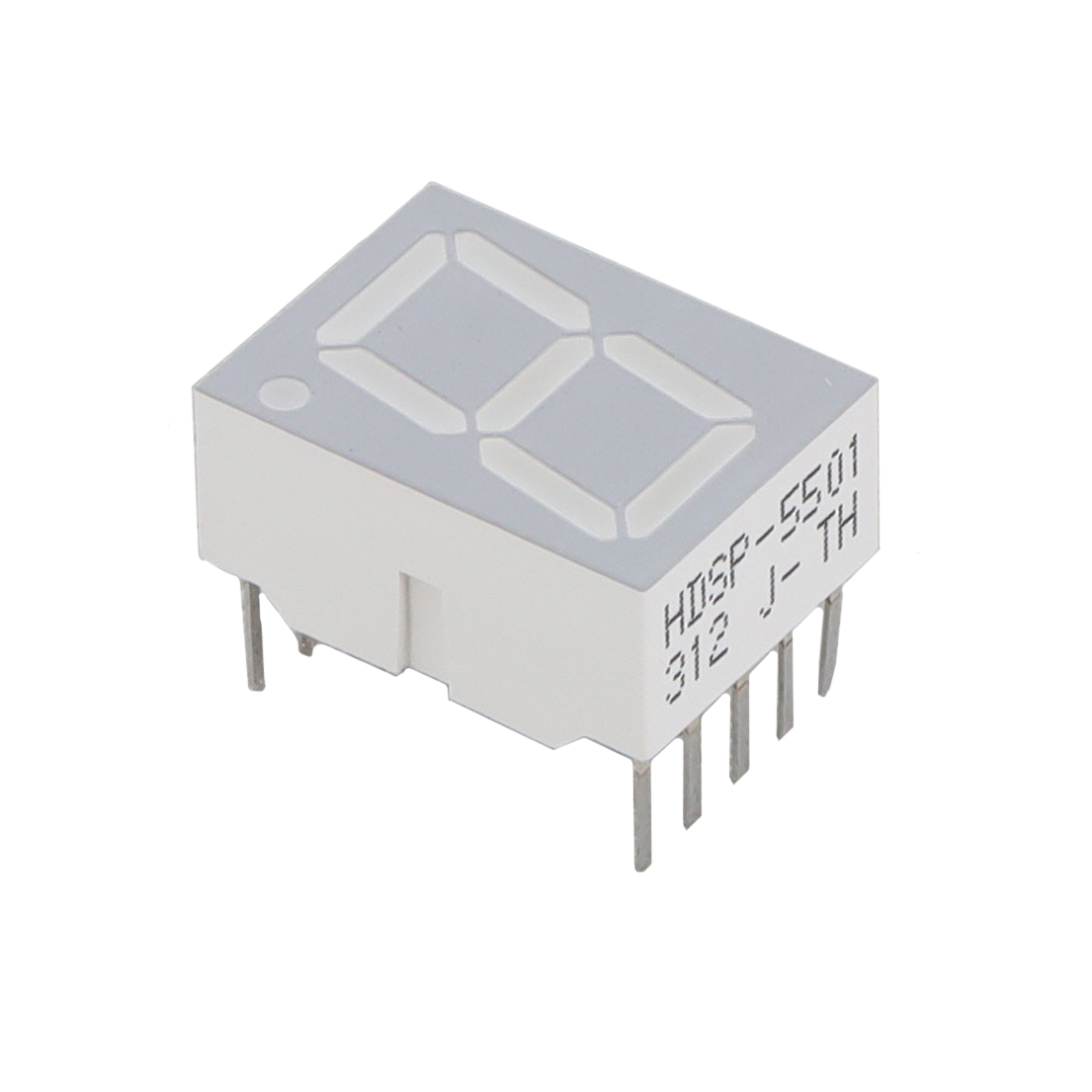

HDSP-5501-GG000
DISPLAY 7SEG 0.56"" SGL RED 10DIP

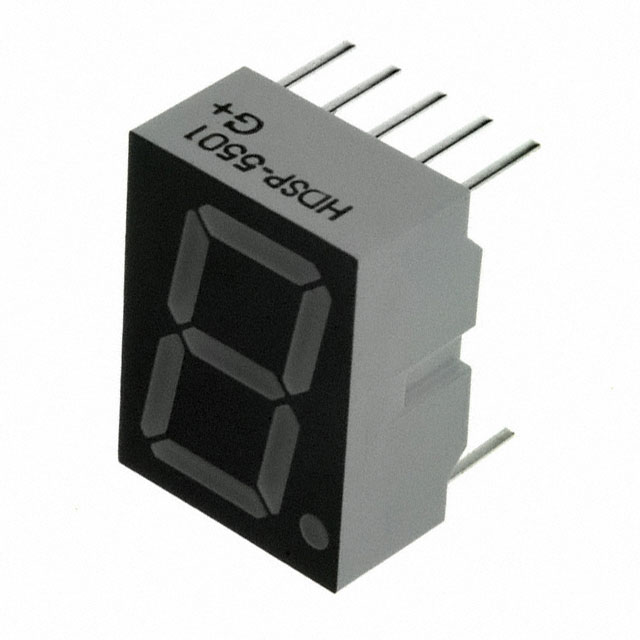

HDSP-5501-GH000
DISPLAY 7SEG 0.56"" SGL RED 10DIP

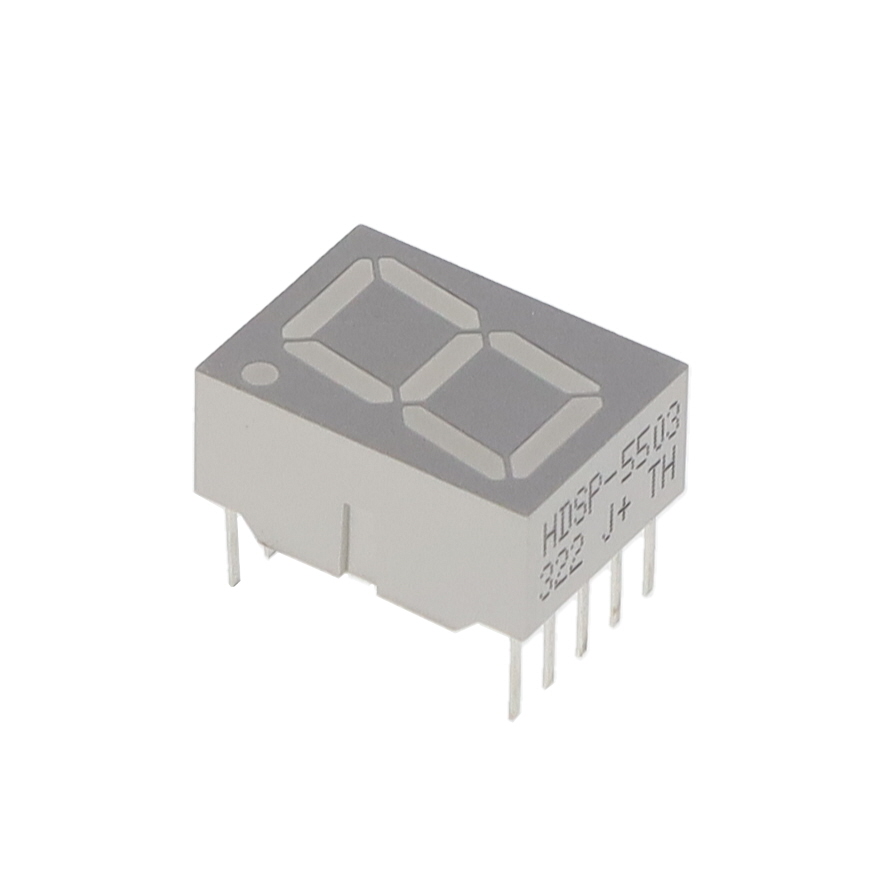

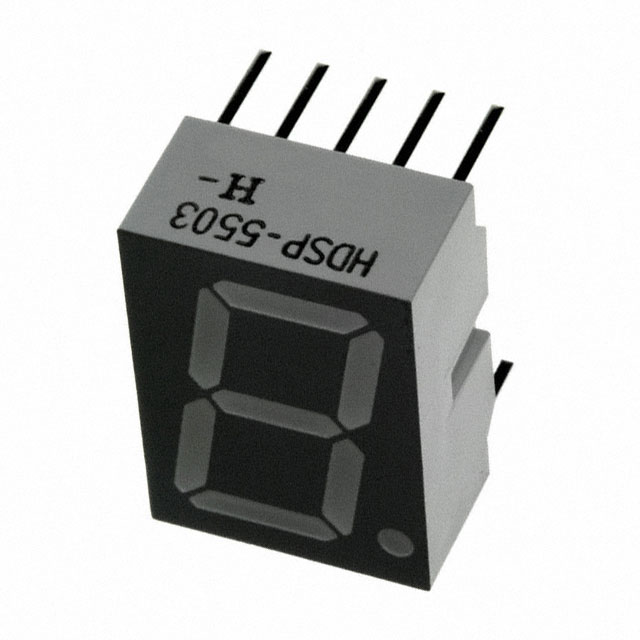

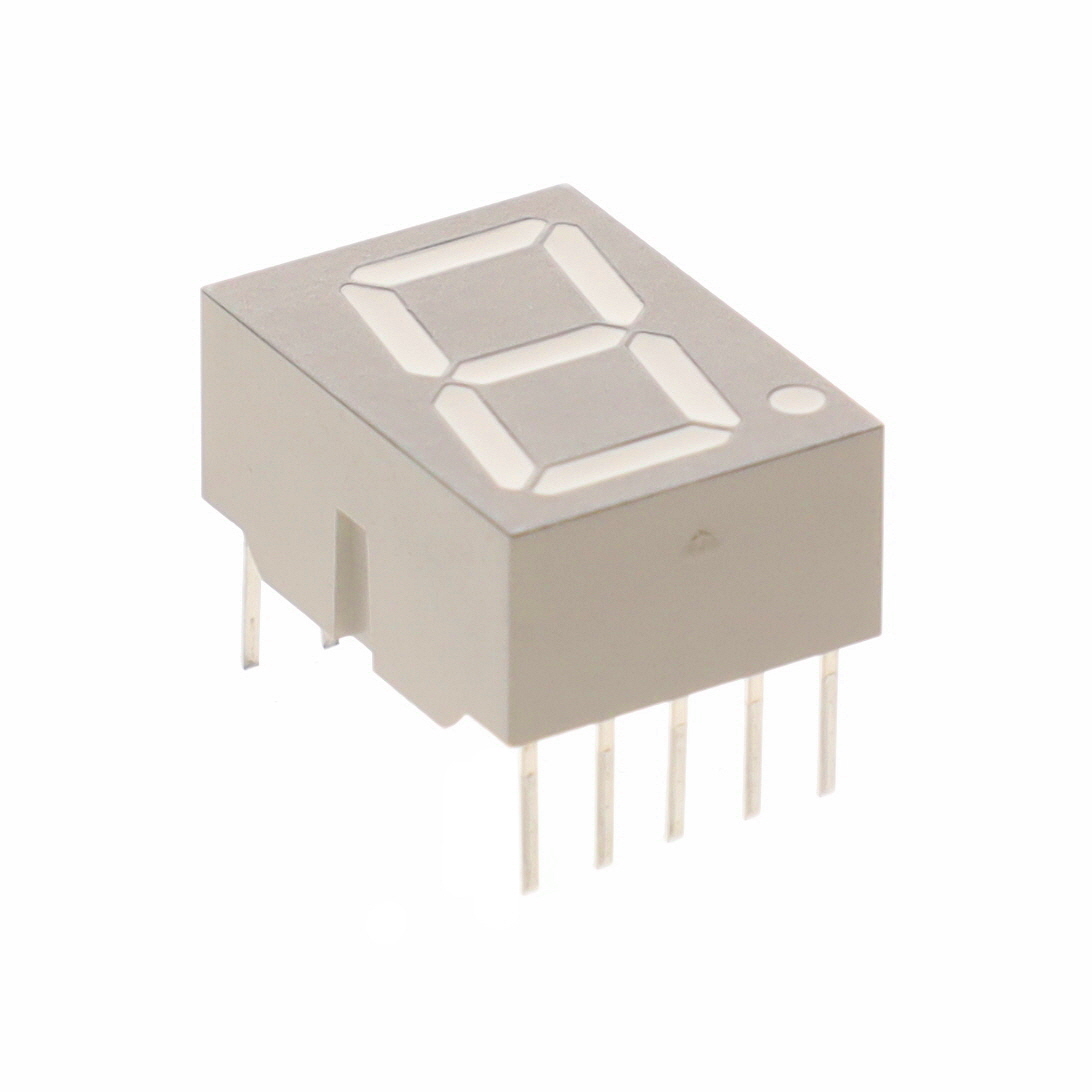

HDSP-5503-GG000
